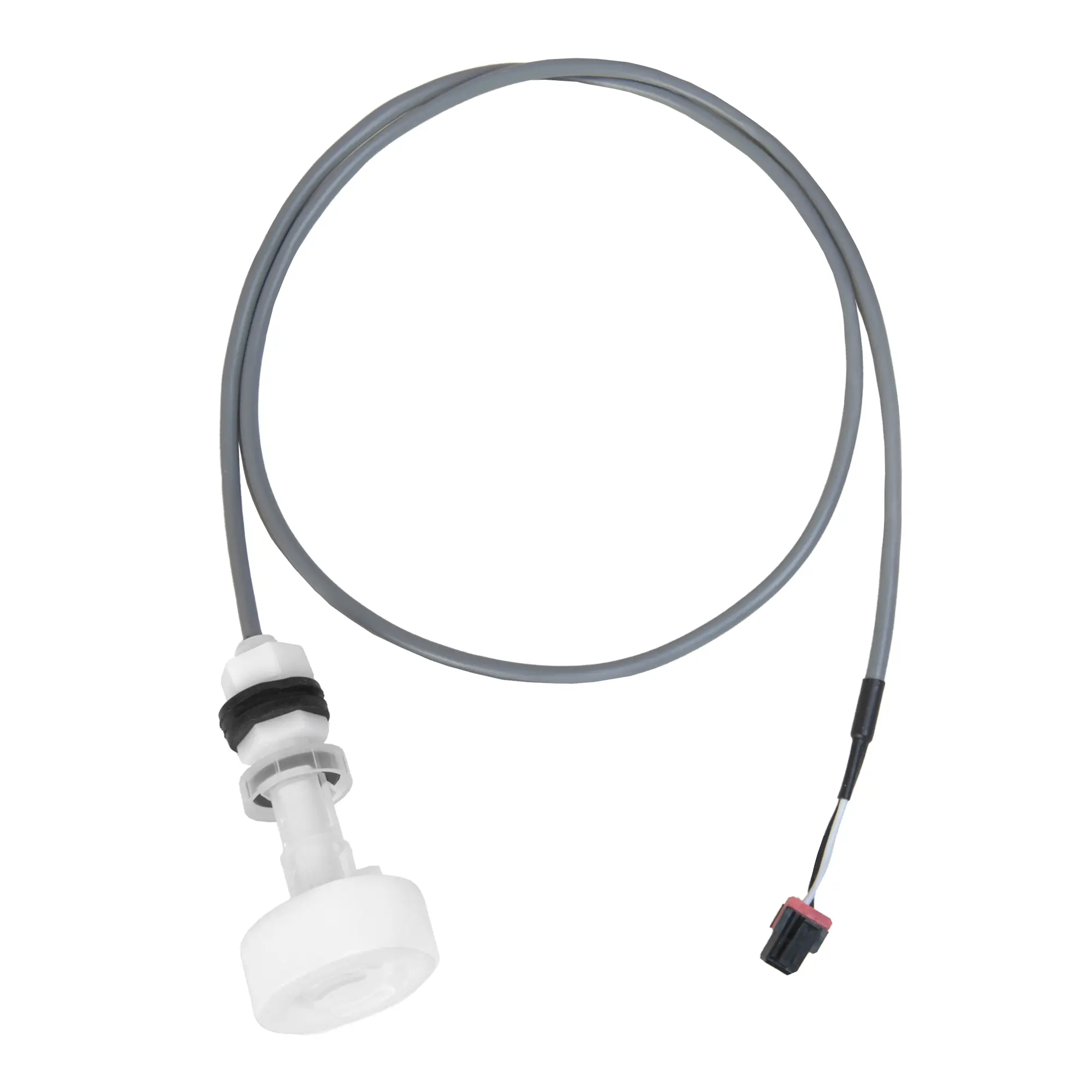

The DK-LV-003 Float Level Sensor by DK Sensor delivers dependable mechanical switching engineered to overcome the chronic failure points of traditional float mechanisms. Featuring an innovative internal housing architecture that keeps critical switching elements isolated from water contact, the DK-LV-003 completely prevents malfunctions caused by slime, scaling, or foreign materials. Fully optimized for professional “Design-in” engineering and OEM hardware integration, this rugged float switch offers exceptional resilience, cost-efficiency, and long-term Project Protection.
Key Technical Highlights:
Slime & Clogging Resistance: Specially structured internal body ensures the sensing zone remains free of water, preventing mechanical sticking or false readings from biological buildup and debris.
Resin-Molded Durability: The entire DK-LV-003 switch body is fully molded with protective resin, providing superior resistance to physical impacts, high vibrations, and harsh environmental exposure.
High-Reliability Reed Switch Technology: Powered by industrial-grade reed switches (AT40~AT45 specifications), supporting maximum switching voltages up to 100 Vdc and a carrying current of up to 0.7A.
Anti-Chattering Calibration: Engineered with distinct mechanical ON/OFF activation zones (ON distance: 1.4mm–5.4mm / OFF distance: 10mm–1.4mm) to eliminate signal chattering caused by surface turbulence or fluid movement.
Target Applications: Built to endure challenging industrial and climate control environments, the DK-LV-003 float switch is ideal for HVAC condensate pans, commercial air conditioning overflow prevention, water filtration tanks, drainage systems, and automated industrial liquid processing.
