PRESTONICS presents the DK-PS-002 Hall IC Sensor manufactured by DK Sensor, a high-precision, solid-state magnetic switch engineered for instantaneous liquid-level threshold tracking and object detection. Fully optimized for professional “Design-in” engineering and automated OEM appliance manufacturing, this fast-reacting module delivers the tight positioning tolerances and Project Protection demanded by active fluidic and mechanical sub-systems.
The sensor is strategically configured with an integrated Hall Effect element and internal logic to ensure bulletproof positioning accuracy:
Shock-Resistant Solid-State Build: Encapsulated to resist extreme external mechanical shock and structural vibrations, guaranteeing a completely drift-free operational lifespan.
Precise Positioning & Rapid Reaction: Features an advanced internal Schmitt Trigger and latch circuit that registers state changes within microseconds, allowing for immediate controller notifications.
Flexible Smart Sleep Architecture: Minimizes power distribution by automatically cycling between an awake state (1.4mA) and an ultra-low sleep state (3.6µA), reducing average current draw to a mere 5µA.
Versatile Modular Form Factor: Streamlines installation across complex systems due to diversified mounting structures available in both integrated and separate configurations.
Technical Specifications Summary:
Technology Type: Hall Effect IC Switch with Internal Schmitt Trigger & Latch
Operating Voltage (VDD): Wide 1.65V to 6.0V range
Average Current Draw: Ultra-efficient 5µA typical (3.6µA during integrated sleep cycles)

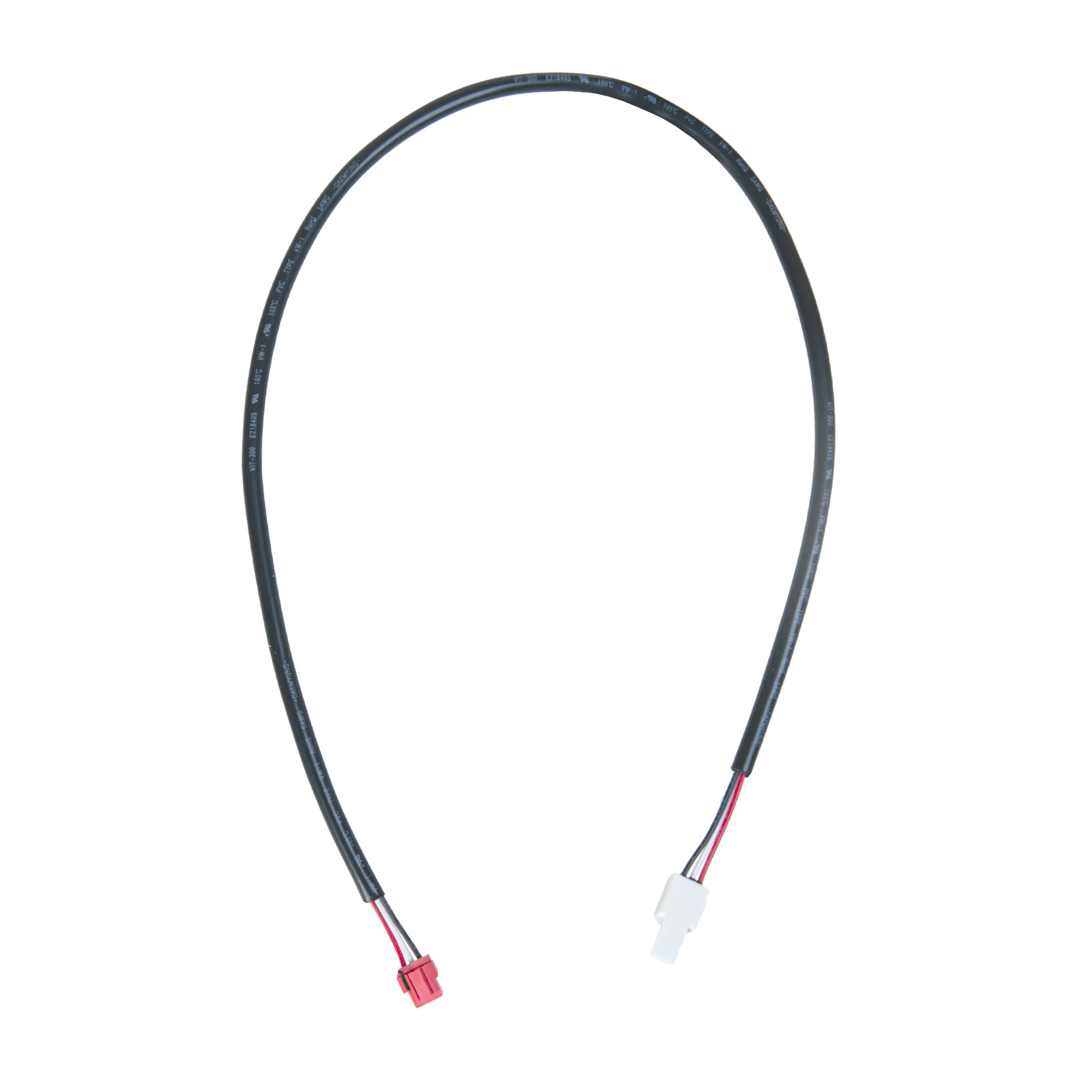

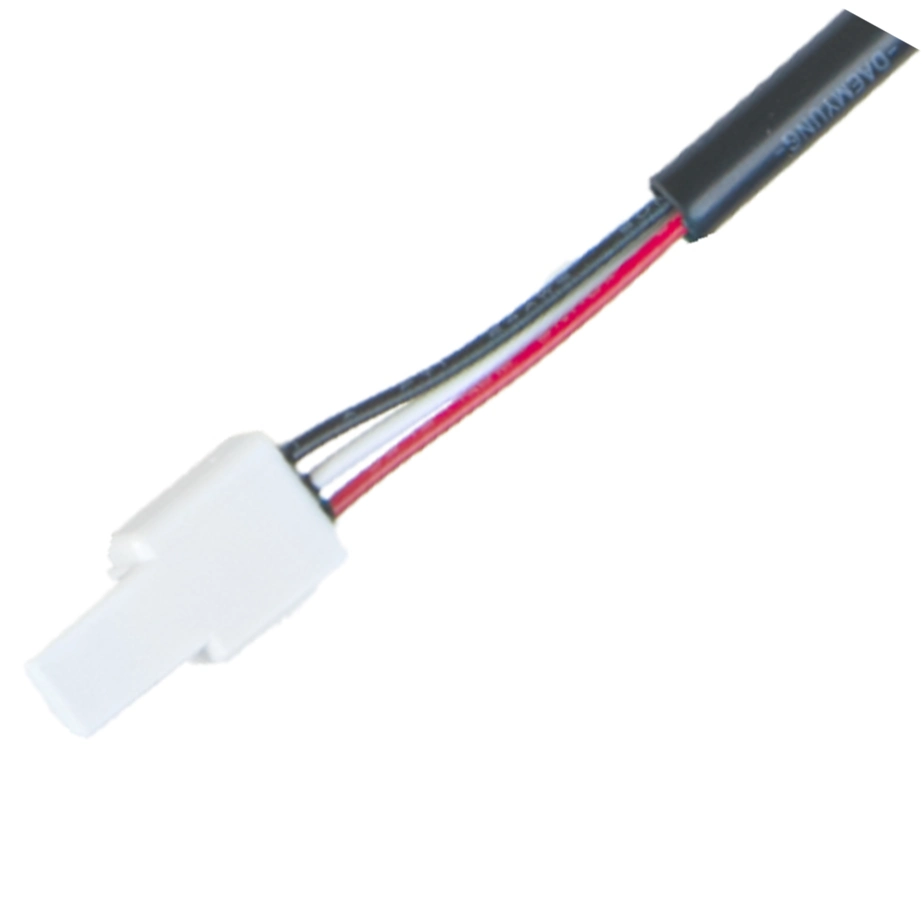

Wiring Specifications: Durable 300mm ±10mm assembly featuring a clear 3-wire layout (VDD, VSS, and Digital OUT)

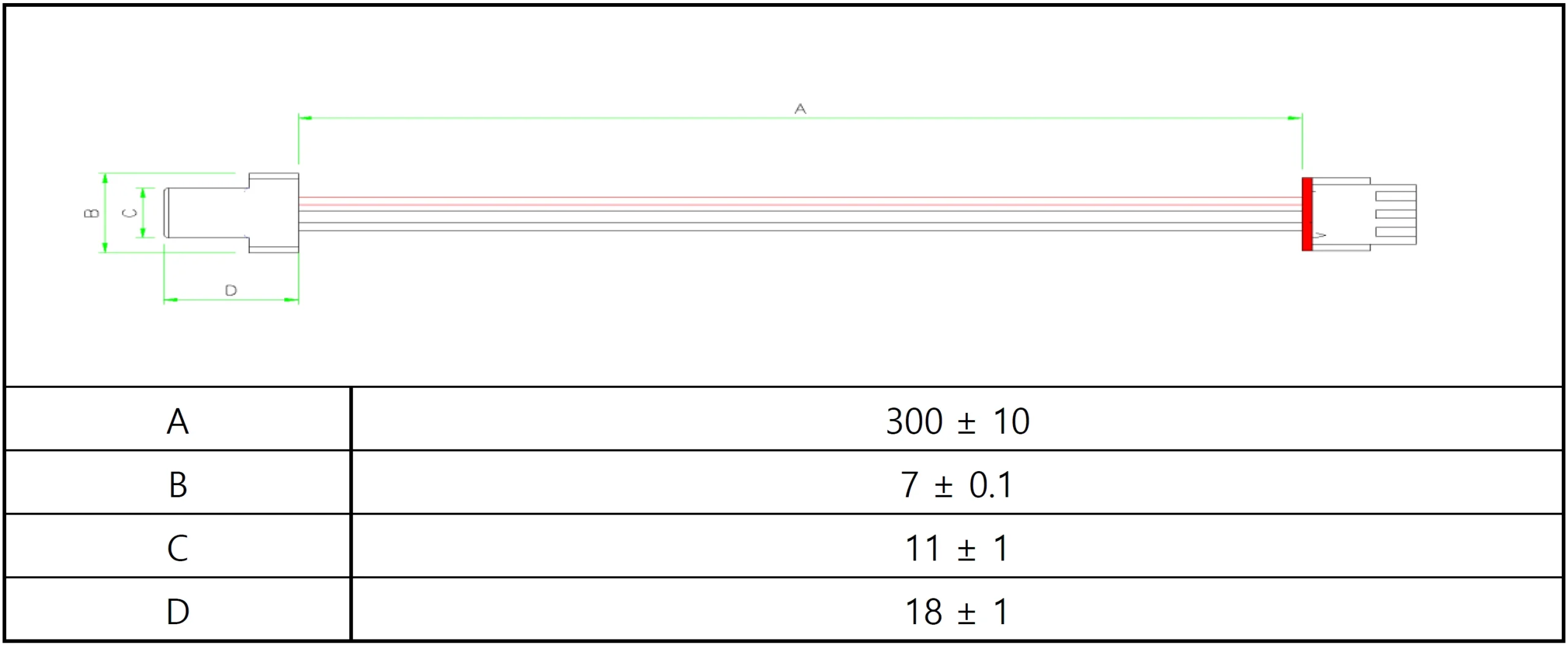

Structural Dimensions: In-line probe form factor measuring 18mm x 11mm
Designed for exceptional environmental resilience, the DK-PS-002 is the ideal choice for contactless liquid level detection via magnetic floats, refrigerator door monitoring, smart dehumidifiers, and high-efficiency water purifiers.
