PRESTONICs presents the DK-LED-001 LED Light Assembly manufactured by DK Sensor, a premium pre-wired optoelectronic module engineered to provide high-visibility ambient illumination and user orientation in low-light environments. Fully optimized for professional “Design-in” engineering and high-volume OEM assembly, this durable, panel-mount light guide delivers the exact physical sealing and Project Protection demanded by modern fluidic and sanitary hardware.
The module is strategically configured with a high-performance optical lens and robust housing to guarantee a seamless plug-and-play user experience:
Focused High-Brilliance Illumination: Features a premium 5mm (Φ5) blue LED emitting a high-intensity luminous output of 20,000 mcd with a narrow, targeted 15-degree viewing angle for crisp, non-glare pinpoint lighting.
Integrated Dark-Ambient Ergonomics: Purpose-built to be mounted as a structural appliance component, making it easier for end-users to navigate and operate equipment safely in complete darkness.

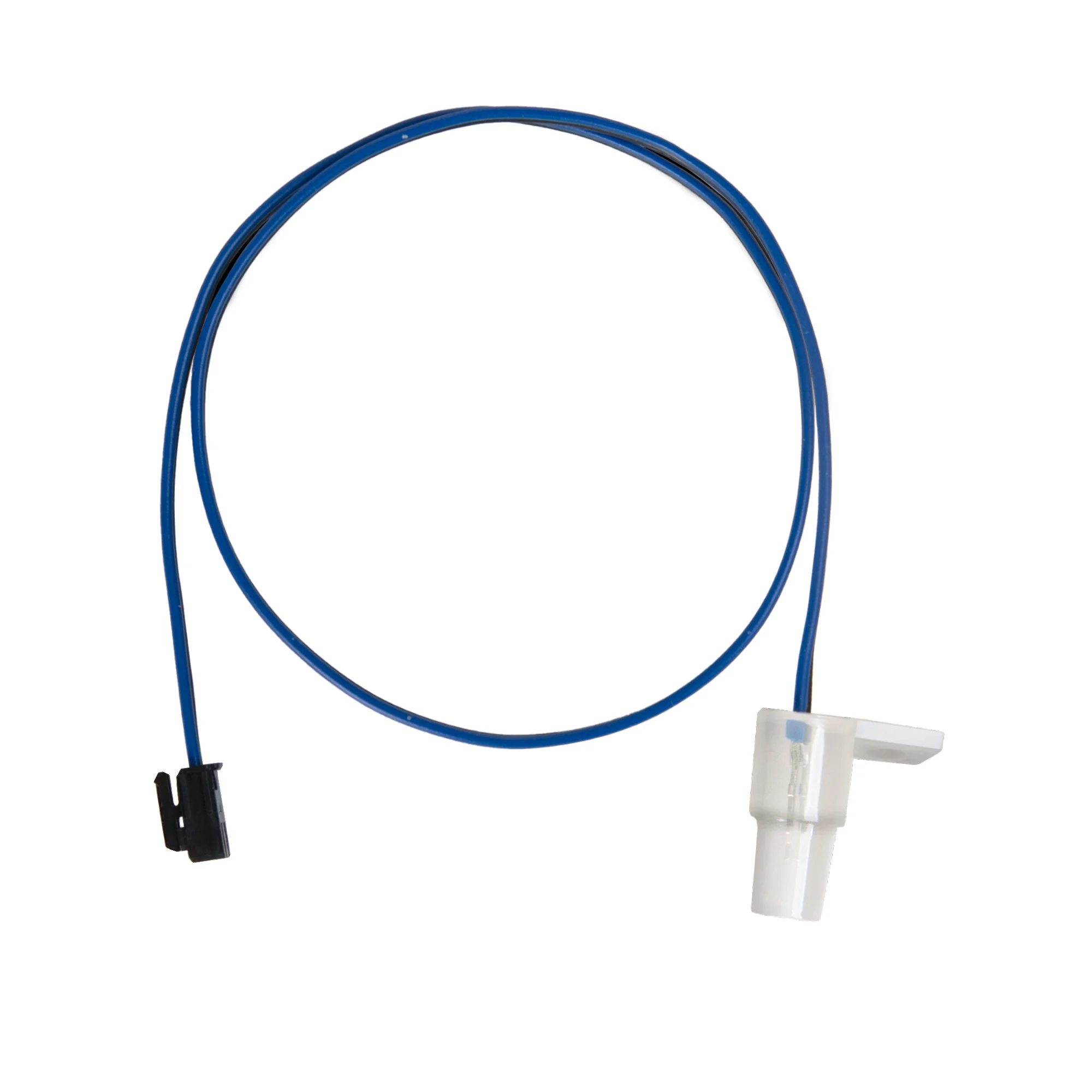

Streamlined Pre-Assembled Wiring: Supplied with a long 400mm ±10mm insulated wire lead terminated with a secure connector, drastically reducing assembly time and manual labor on the production line.

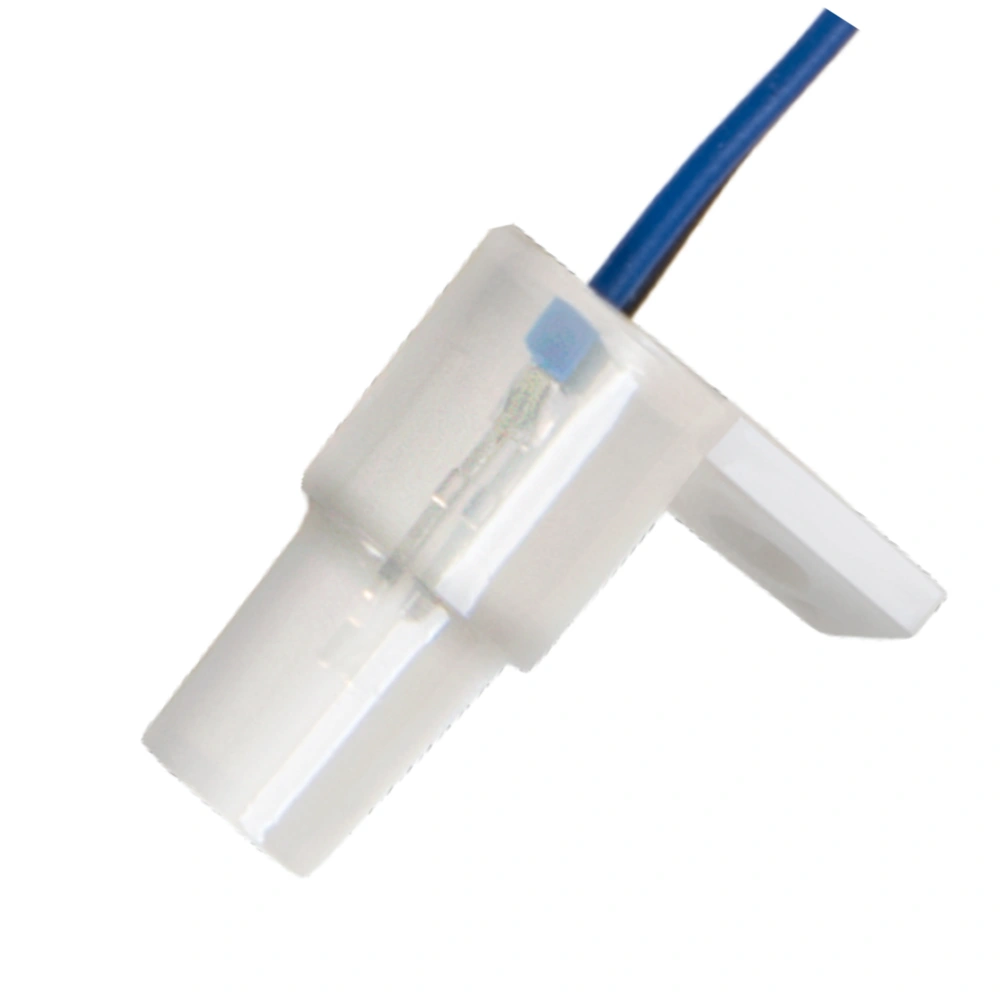

Ruggedized Application Housing: Enclosed in a robust, specialized right-angle panel-mount plastic sleeve (22.1mm height) optimized for secure mechanical press-fit execution inside damp appliance frames.
Technical Specifications Summary:
LED Configuration: Φ5 High-Intensity Blue LED (448nm to 456nm dominant wavelength)
Luminous Intensity: 20,000 mcd typical at a forward current of 20mA
Electrical Ratings: Max power dissipation of 80mW; forward voltage of 2.9V to 3.4V; max continuous forward current of 20mA
Environmental Thresholds: Operating temperature spectrum of -30°C to +85°C; storage capability from -40°C to +100°C

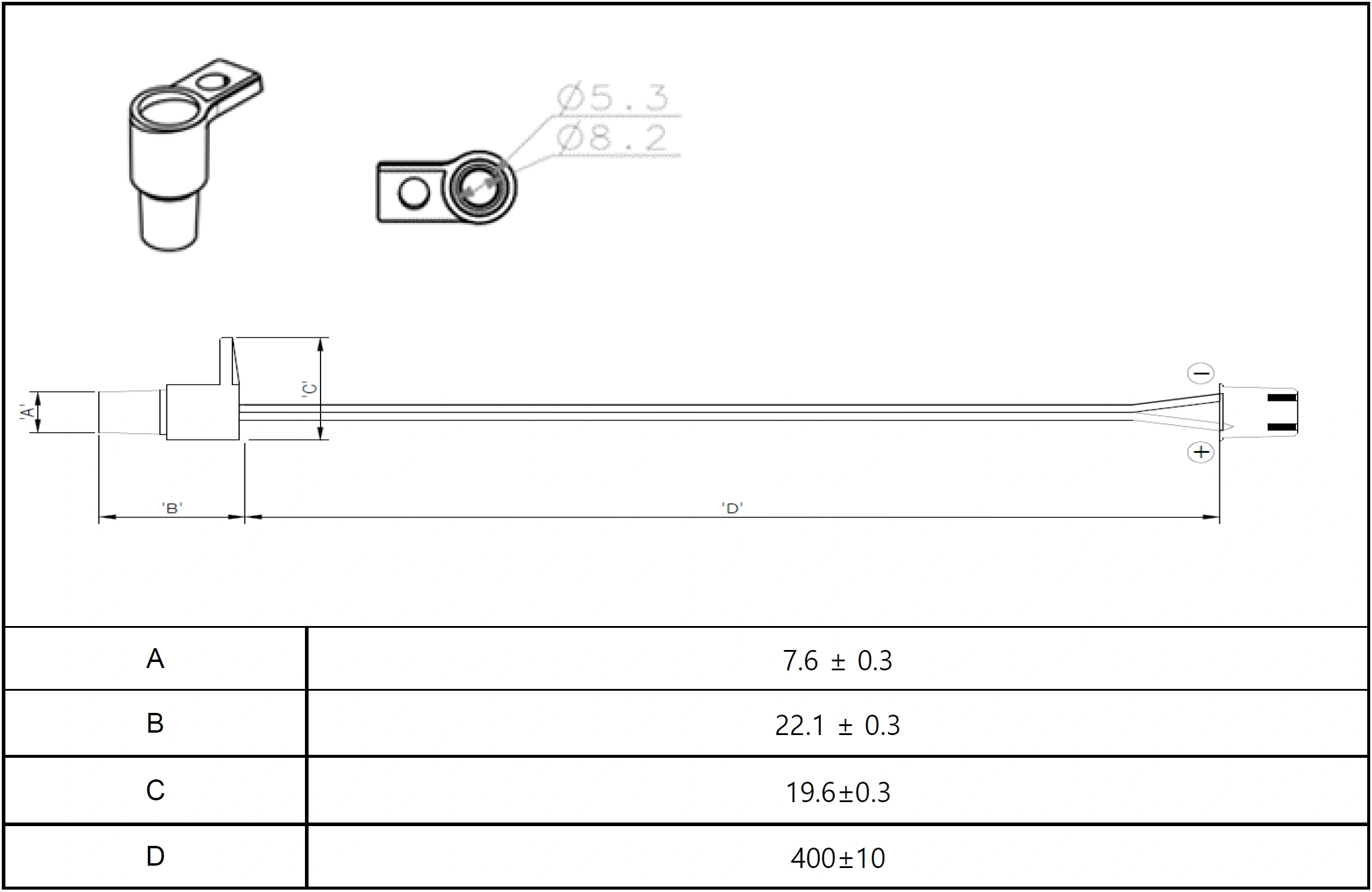

Physical Dimensions: 400mm ±10mm wire length; 22.1mm ±0.3mm body length with a 5.3mm/8.2mm collar diameter
Target Applications: Optimized for flawless execution inside premium residential water purifiers, electronic smart bidets, commercial beverage dispensers, and automated consumer appliances requiring dedicated night-light or status-chassis illumination.
