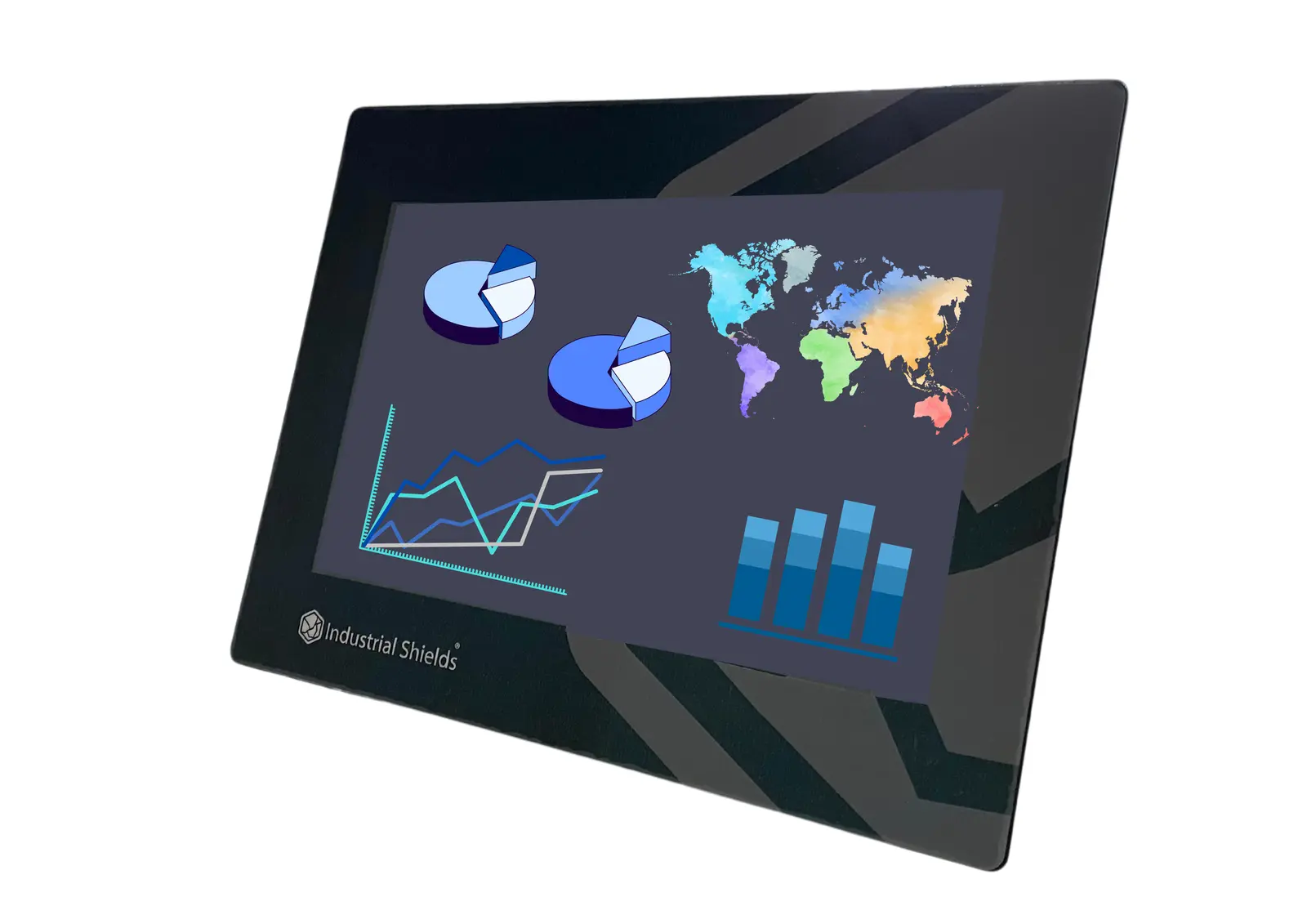

The Touchberry 10.1” is a professional-grade industrial panel PC engineered for environments that demand crisp visualization and unwavering reliability. Combining a responsive capacitive touchscreen with a pre-installed Linux OS, it serves as a powerhouse for HMI systems, automation hubs, and real-time monitoring stations.
Built to withstand the grind, its fanless design ensures silent, durable operation, while an optional IP65-rated front panel provides a shield against the dust and moisture of harsh industrial settings.
Crisp Interaction: 10.1” capacitive touchscreen for smooth, precise control.
Software Ready: Pre-loaded with Linux for immediate deployment.
Industrial Resilience: Robust, fanless architecture with optional IP65 protection.
Versatile Utility: Optimized for industrial supervision, control systems, and monitoring.
| Feature | Configuration |
| Digital I/O | 3x Digital Inputs / 5x Digital Outputs |
| Analog Inputs | 2x Inputs (Jumper-configurable for 0-10Vdc or 4-20 mA) |
| Connectivity | Ethernet, RS485, Serial TTL, RS-232 |
| Optional Extras | External Antenna (contact us for details) |
If your setup requires extended wireless range, don’t forget to ask us about the external antenna upgrade to keep your signals steady even in complex factory layouts.
