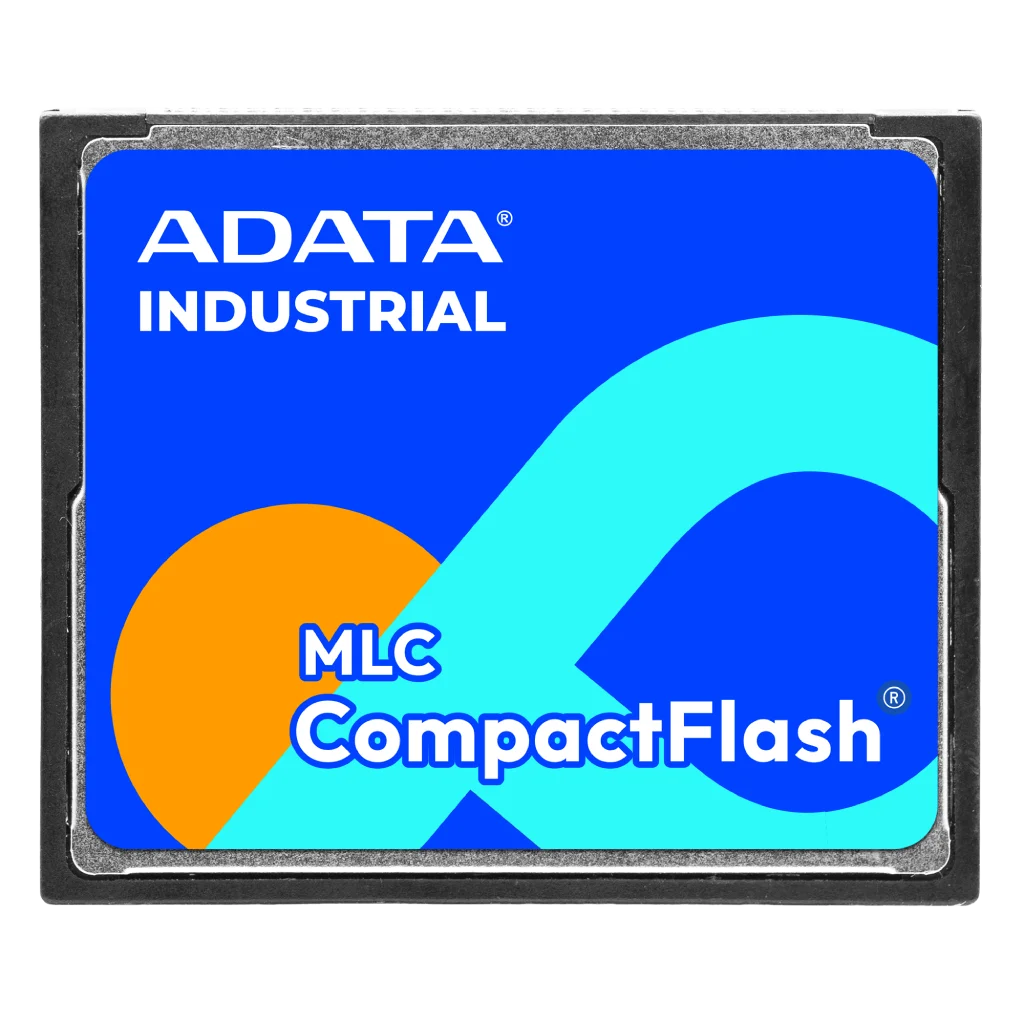

High-Reliability PATA/IDE Storage Solutions for Legacy Embedded Platforms & Industrial Control PRESTONICs presents ADATA Industrial CompactFlash (CF) Cards, engineered to provide high-endurance, drop-in replacement flash storage for legacy embedded motherboards, industrial automation machinery, and defense systems. Utilizing the field-proven 50-pin PATA/IDE interface, this series combines strict Bill of Materials (BOM) locking with long-term Project Protection to guarantee component continuity and system longevity without costly board redesigns.
ADATA Industrial CF cards feature robust hardware architecture and intelligent firmware algorithms to maintain continuous operation in harsh industrial environments:
Key Engineering Highlights:
PATA / True IDE Interface Compatibility: Fully compliant with CompactFlash Association (CFA) specifications, supporting True IDE mode, PCMCIA mode, PIO modes, Multi-Word DMA, and Ultra DMA (UDMA) modes for 100% drop-in compatibility with legacy host systems.
A+ SLC & High-Endurance Flash: Powered by industrial-grade 3D NAND and proprietary A+ SLC technology, delivering up to 100K P/E cycles for non-stop OS boot routines, continuous PLC logging, and high-frequency read/write cycles.
Wide-Temperature Endurance: Certified and thermally screened to operate reliably across extreme industrial temperature ranges from -40°C to +85°C.
Power Loss Protection & Data Integrity: Advanced firmware-based Sudden Power-Off Protection (SPOP), hardware BCH/LDPC ECC, and Global Wear Leveling safeguard critical boot files and data structures against unexpected power cutoffs.
Industrial Hardware Defense: Features 30µ” gold finger contact plating for maximum connector wear resistance, ASTM B809-95 compliant anti-sulfurization resistors, and extreme shock (1500G) and vibration (20G) tolerance.
Technical Specifications Summary:
Form Factor: CompactFlash Type I (36.4mm x 42.8mm x 3.3mm)
Interface & Protocols: 50-pin PATA / IDE (True IDE Mode, PCMCIA, UDMA 0-6, MDMA, PIO)
Flash Memory Technologies: Industrial 3D TLC, SLC, A+ SLC / pseudo-SLC
Capacity Spectrum: 512MB to 256GB+
Operating Temperatures: Standard Commercial (0°C to +70°C) / Industrial Wide Temp (-40°C to +85°C)
Protection & Reliability: Anti-Sulfurization ASTM B809-95, 30µ” Gold Plating, Sudden Power-Off Protection (SPOP), Shock & Vibration Resistant, Card Health Monitoring
Target Applications: Optimized for legacy Programmable Logic Controllers (PLCs), CNC machine tools, military avionics, medical control consoles, gaming systems, and legacy Industrial PCs (IPC) featuring dedicated 50-pin CF sockets.
