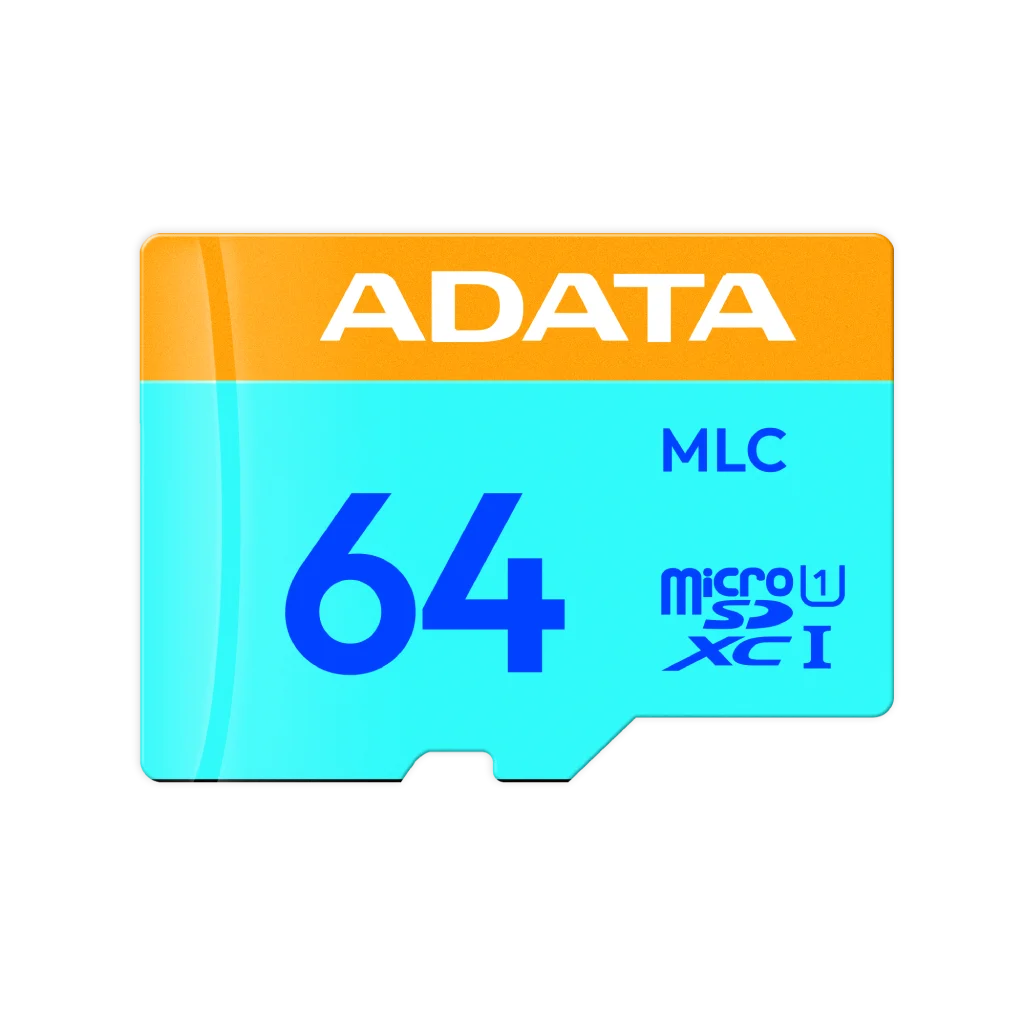

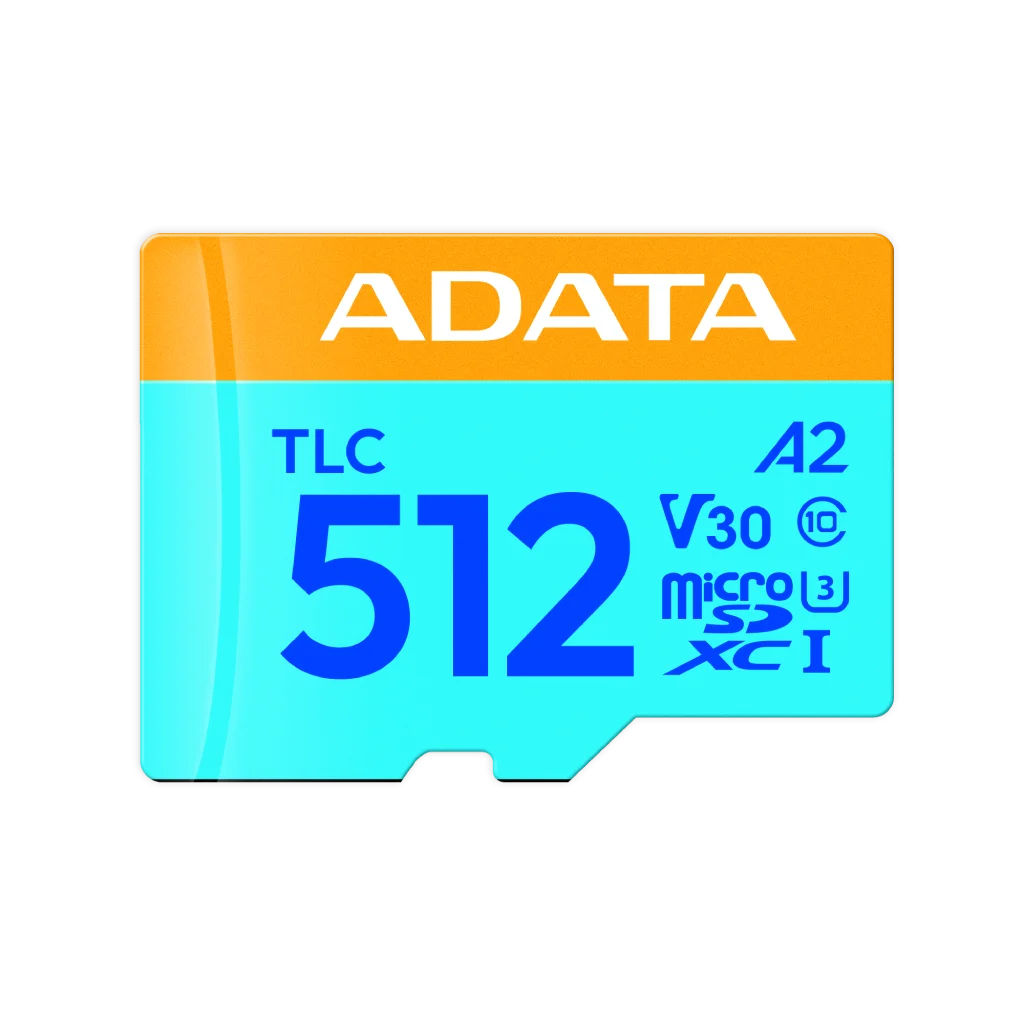

High-Endurance, Miniature Storage for IoT Edge Devices, Surveillance & Rugged Telematics PRESTONICs presents ADATA Industrial microSD Cards, engineered specifically for space-constrained embedded systems and outdoor surveillance platforms that demand high write endurance, low power consumption, and extreme environmental durability. Built with industrial-grade 3D NAND and proprietary A+ SLC technology, this product lineup features strict Bill of Materials (BOM) locking and dedicated Project Protection to ensure drop-in hardware consistency for long-term OEM developments.
ADATA Industrial microSD cards combine advanced memory management firmware with ruggedized hardware shielding to prevent data loss in demanding edge applications:
Key Engineering Highlights:
Ultra-Compact Footprint: Standard microSD form factor (15mm x 11mm x 1mm), ideal for low-profile IoT edge enclosures, compact cameras, and wearable diagnostic hardware.
Continuous Recording & Application Performance: Compliant with SD 6.1 / SD 5.1 standards, supporting UHS-I Speed Class 3 (U3), Video Speed Class 30 (V30), and Application Performance Class A2/A1 for seamless 4K/FHD continuous video streaming and rapid random IOPS execution.
A+ SLC & High-Endurance 3D NAND: Available in industrial 3D TLC and proprietary A+ SLC configurations, delivering write endurance up to 100K P/E cycles for non-stop multi-channel video logging and sensor data capturing.
Wide-Temperature Endurance: Validated and thermally screened to operate reliably across extreme industrial temperature ranges from -40°C to +85°C.
Power-Loss Safeguard & Data Integrity: Intelligent firmware-based Sudden Power-Off Protection (SPOP), Auto-Read Refresh, LDPC ECC error correction, and Wear Leveling algorithms prevent file system corruption during unexpected power outages.
Rugged Environmental Shielding: Features 30µ” gold finger contact plating for connector wear resistance, ASTM B809-95 compliant anti-sulfurization resistors, waterproof (IPX7), shock-proof, ESD resistant, and X-ray immune construction.
Technical Specifications Summary:
Form Factor: microSDHC / microSDXC (15.0mm x 11.0mm x 1.0mm)
Interface & Standards: SD 6.1 / SD 5.1 (UHS-I, Class 10, U3, V30, A2 / A1)
Flash Memory Technologies: Industrial 3D TLC (BiCS5), A+ SLC / pseudo-SLC
Capacity Spectrum: 4GB to 512GB+
Operating Temperatures: Standard Commercial (0°C to +70°C) / Industrial Wide Temp (-40°C to +85°C)
Protection & Reliability: Anti-Sulfurization, 30µ” Gold Contacts, Sudden Power-Off Protection (SPOP), IPX7 Waterproof, Card Health Monitoring Utility
Target Applications: Optimized for fleet management dashcams, outdoor IP video surveillance, UAV/drone flight loggers, handheld medical terminals, smart utility meters, and ruggedized IoT edge gateways.
