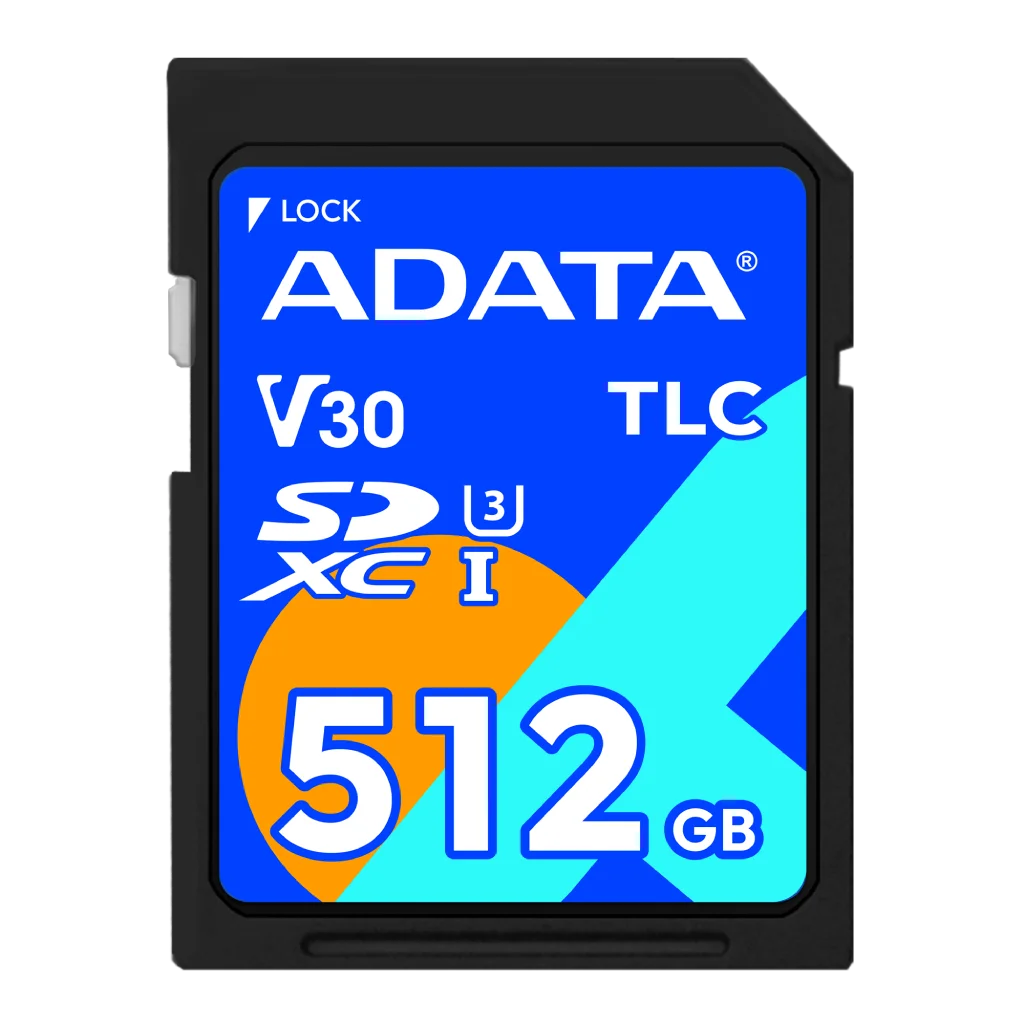

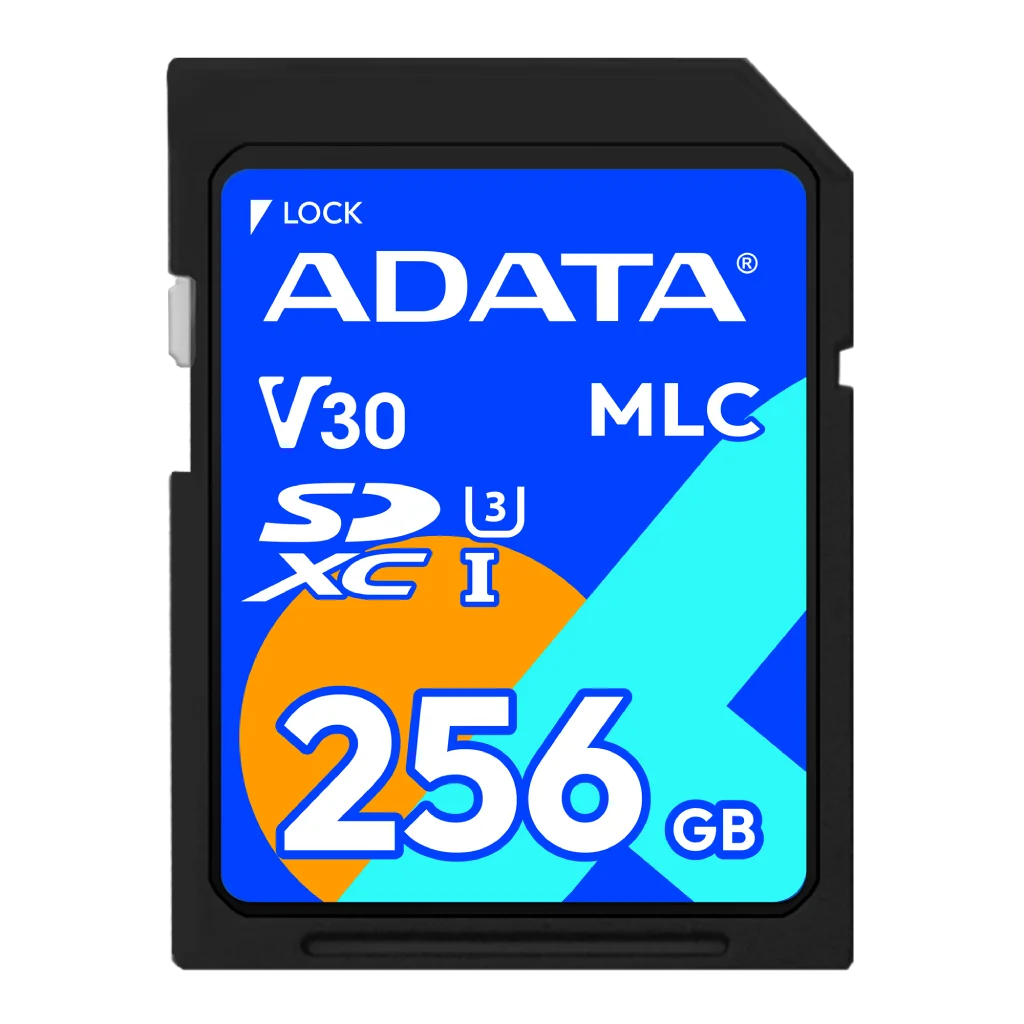

High-Endurance, Broadly Compatible Storage for Embedded Hardware & Industrial Systems PRESTONICs presents ADATA Industrial SD Cards, engineered to deliver ruggedized, removable flash storage for industrial PCs, medical systems, and automated field electronics. Featuring standard SDHC/SDXC physical dimensions with industrial-grade 3D NAND and proprietary A+ SLC flash technology, this series provides strict Bill of Materials (BOM) control and dedicated Project Protection to ensure hardware stability and long lifecycle support for OEM manufacturers.
ADATA Industrial SD cards combine advanced controller management with physical durability to protect critical data against harsh operational stresses:
Key Engineering Highlights:
Standard SD Form Factor: Fully compliant with JEDEC and SD Association standards (32mm x 24mm x 2.1mm), featuring an integrated hardware Write-Protect switch to prevent accidental data overwrites or unauthorized file modification.
High Transfer Speeds & Continuous Recording: Compliant with SD 6.1 / SD 5.1 specifications, supporting UHS-I Speed Class 3 (U3), Video Speed Class 30 (V30), and Application Performance Class A2/A1 for fast boot sequences, heavy logging, and smooth media capture.
A+ SLC & High-Endurance 3D NAND: Built with high-reliability 3D TLC flash and optional proprietary A+ SLC technology, reaching up to 100K P/E cycles for continuous 24/7 operating durability.
Wide-Temperature Endurance: Certified and thermally screened to operate reliably across extended industrial temperature ranges from -40°C to +85°C.
Sudden Power-Off Protection (SPOP): Advanced firmware algorithms safeguard file system integrity, preventing data loss and card corruption caused by unexpected power interruptions.
Industrial-Grade Environmental Protection: Features 30µ” gold finger contact plating for connector wear resistance, ASTM B809-95 compliant anti-sulfurization resistors, waterproof, shockproof, dustproof, and X-ray shielded construction.
Technical Specifications Summary:
Form Factor: SDHC / SDXC (32.0mm x 24.0mm x 2.1mm)
Interface & Standards: SD 6.1 / SD 5.1 (UHS-I, Class 10, U3, V30, A2 / A1)
Flash Memory Technologies: Industrial 3D TLC (BiCS5), A+ SLC / pseudo-SLC
Capacity Spectrum: 4GB to 512GB+
Operating Temperatures: Standard Commercial (0°C to +70°C) / Industrial Wide Temp (-40°C to +85°C)
Protection & Health: Hardware Write-Protect Switch, Anti-Sulfurization, 30µ” Gold Contacts, Sudden Power-Off Protection (SPOP), Card Health Monitoring Utility
Target Applications: Optimized for Industrial PCs (IPC), human-machine interfaces (HMI), medical diagnostic equipment, outdoor interactive kiosks, digital signage players, transportation data loggers, and factory automation controllers.
