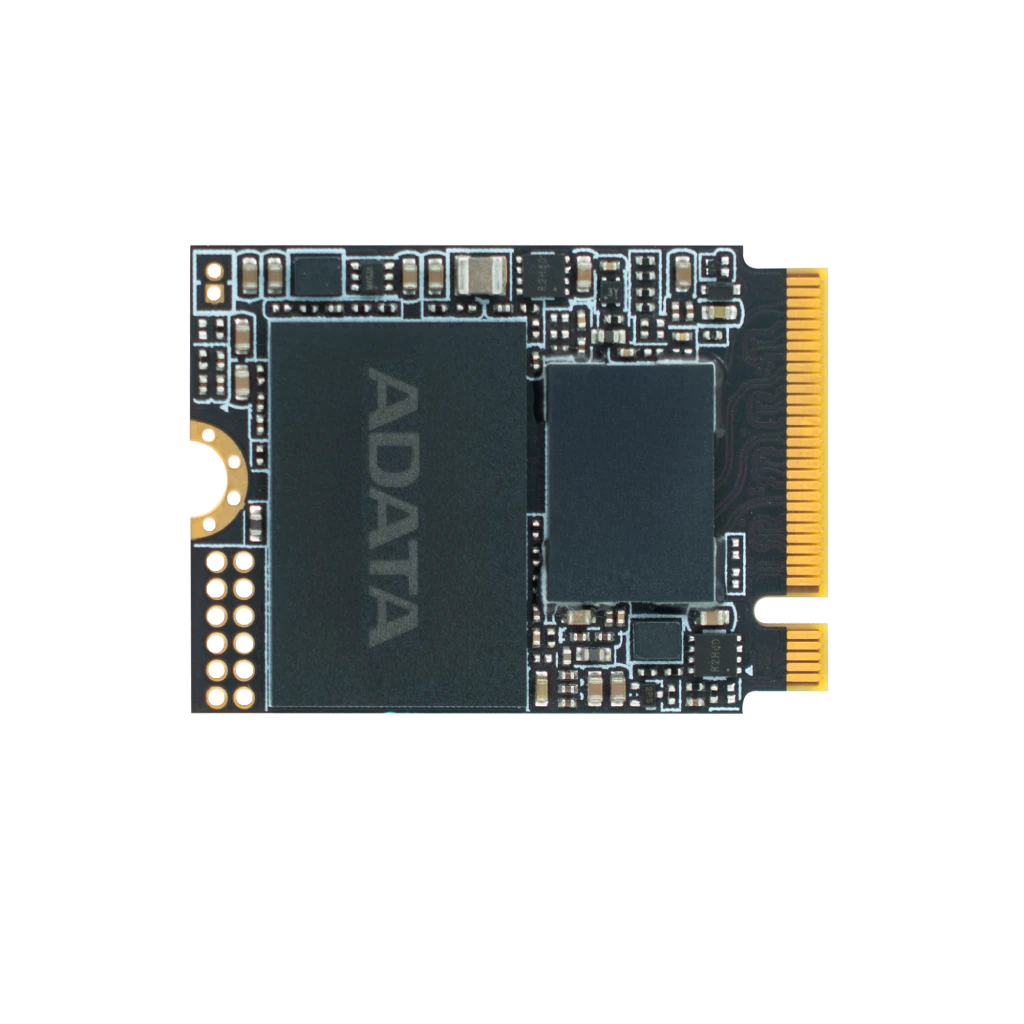

Miniaturized High-Performance Flash Storage for Space-Constrained Embedded Architectures PRESTONICs presents ADATA Industrial M.2 2230 SSDs, engineered to deliver high-speed, reliable storage in the most compact M.2 footprint available (22mm x 30mm). Designed specifically for ultra-thin, low-profile, and weight-sensitive embedded platforms, this series offers strict Bill of Materials (BOM) locking, industrial-grade endurance, and dedicated Project Protection for specialized OEM hardware designs.
Key Engineering Highlights:
Ultra-Compact M.2 2230 Form Factor: Measuring just 22mm x 30mm, enabling direct integration into space-restricted Single Board Computers (SBCs), handheld devices, and fanless IoT nodes without sacrificing performance.
A+ SLC & High-Endurance 3D NAND: Utilizing industrial 3D TLC flash and proprietary A+ SLC technology to achieve maximum P/E cycle endurance for write-heavy data logging and system booting.
Wide-Temperature Resilience: Fully screened and validated to operate reliably across extreme industrial temperature ranges from -40°C to +85°C.
Hardware & Environmental Protection: Features 30µ” gold finger contact plating for vibration resistance, ASTM B809-95 compliant anti-sulfurization resistors, thermal throttling management, and optional Power Loss Protection (PLP).
Data Security Integrity: Equipped with hardware AES 256-bit encryption, TCG Opal 2.0 compliance, and End-to-End (E2E) Data Path Protection to safeguard sensitive edge data.
Interface & Protocol Breakdown:
M.2 2230 PCIe / NVMe SSDs: Leveraging high-bandwidth PCIe Gen3 / Gen4 interfaces to deliver high random IOPS and low-latency throughput for edge compute modules and compact vision systems.
M.2 2230 SATA III SSDs: High-compatibility SATA 6Gb/s interface tailored for low-power embedded micro-controllers, legacy motherboards, and space-limited IoT devices.
Technical Specifications Summary:
Interface Options: PCIe Gen3 x4 / Gen4 x2 (NVMe), SATA III 6Gb/s
Form Factor: M.2 2230 (22.0mm x 30.0mm x 2.15mm)
Flash Technologies: Industrial 3D TLC, A+ SLC / pseudo-SLC
Capacity Range: 32GB to 512GB+
Operating Temperatures: Standard Commercial (0°C to +70°C) / Industrial Wide Temp (-40°C to +85°C)
Protection Features: 30µ” Gold Plating, Anti-Sulfurization, Thermal Sensor, AES-256 / TCG Opal 2.0, Hardware PLP (select models)
Target Applications: Optimized for compact single-board computers (3.5″ SBCs), ultra-thin fanless IoT gateways, portable medical diagnostics, rugged handheld terminals, drone/UAV flight computers, and defense electronics.
