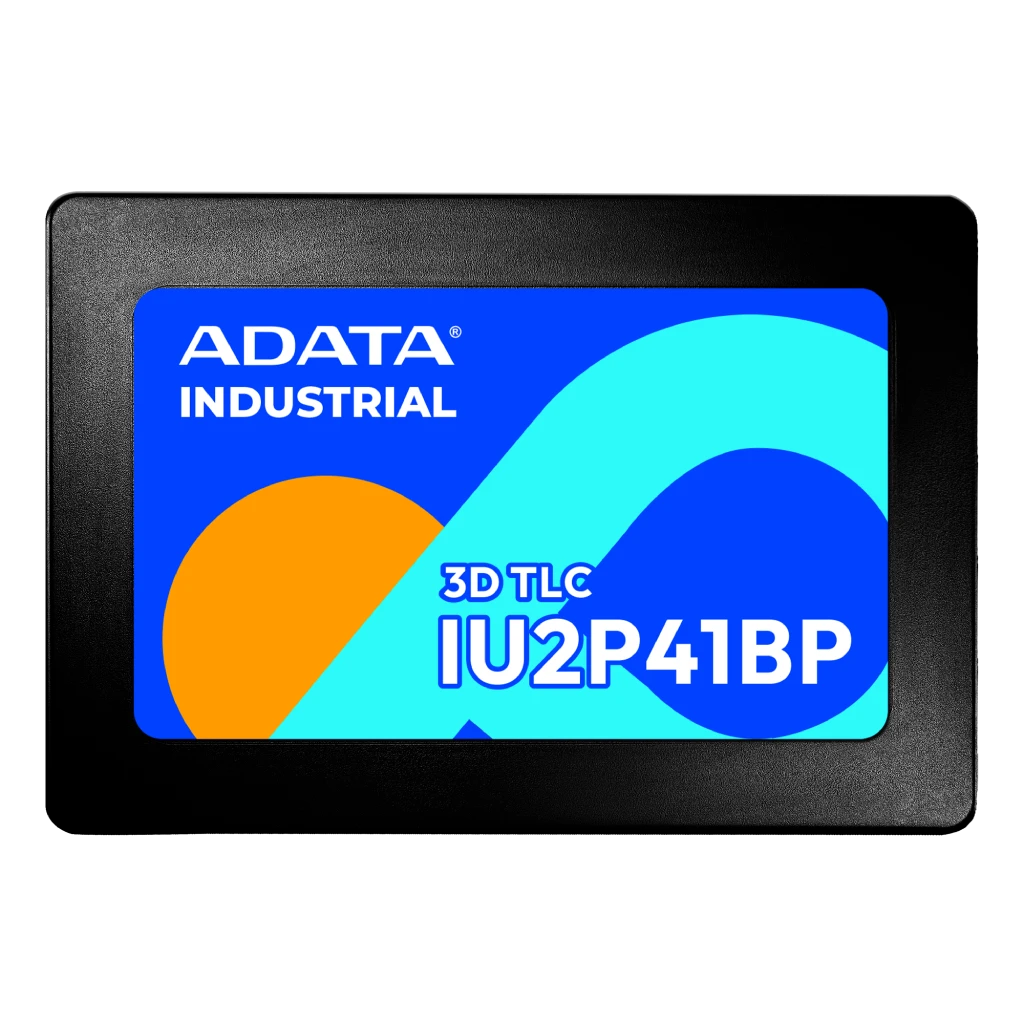

Hot-Swappable, Enterprise-Grade NVMe Performance for Harsh Industrial Computing PRESTONICs presents ADATA Industrial U.2 (2.5″) PCIe SSDs, engineered to deliver enterprise-class NVMe bandwidth combined with rugged physical endurance. Utilizing the 2.5-inch form factor with an SFF-8639 connector over 4 lanes of PCIe, this series provides high-density storage, advanced thermal dissipation, and seamless hot-swappable serviceability. Fully backed by strict Bill of Materials (BOM) locking and Project Protection, these drives are optimized for mission-critical edge servers and heavy industrial compute nodes.
Key Engineering Highlights:
High-Speed PCIe Interface: Supporting PCIe Gen4 x4 and Gen3 x4 over the NVMe protocol, delivering high sequential throughput and massive random IOPS for parallel processing workloads.
Rugged 2.5″ Metal Enclosure & Hot-Swap Support: Built in a durable 2.5″ metal housing that functions as an integrated heatsink, ensuring efficient thermal dissipation while supporting hot-swappable drive maintenance without system downtime.
Hardware Power Loss Protection (PLP): Integrated hardware PLP circuitry with backup tantalum capacitors ensures in-flight DRAM cache data is safely committed to non-volatile flash memory during sudden power outages.
Wide-Temperature Resilience: Thermally screened to operate reliably across extreme industrial temperature ranges from -40°C to +85°C.
Industrial Protection & Security: Features 30µ” gold finger plating for connector longevity, ASTM B809-95 compliant anti-sulfurization resistors, hardware AES 256-bit encryption, TCG Opal 2.0, and high-endurance 3D TLC / A+ SLC flash options.
Technical Specifications Summary:
Interface & Protocols: PCIe Gen4 x4 / PCIe Gen3 x4, NVMe 1.3 / 1.4 compliant (SFF-8639 connector)
Form Factor: 2.5″ / U.2 (7mm / 9.5mm height)
Flash Technology: Industrial 3D TLC (BiCS5), A+ SLC / pseudo-SLC
Capacity Spectrum: 480GB to 8TB+
Operating Temperatures: Standard Commercial (0°C to +70°C) / Industrial Wide Temp (-40°C to +85°C)
Data Security & Integrity: Hardware PLP, Integrated Metal Heatsink Enclosure, Anti-Sulfurization, 30µ” Gold Contacts, AES-256 / TCG Opal 2.0, A+ SMART Health Monitoring
Target Applications: Optimized for 1U/2U rackmount edge servers, high-density AI compute clusters, airborne and defense electronics, ruggedized network attached storage (NAS), and industrial video surveillance recording centers.
