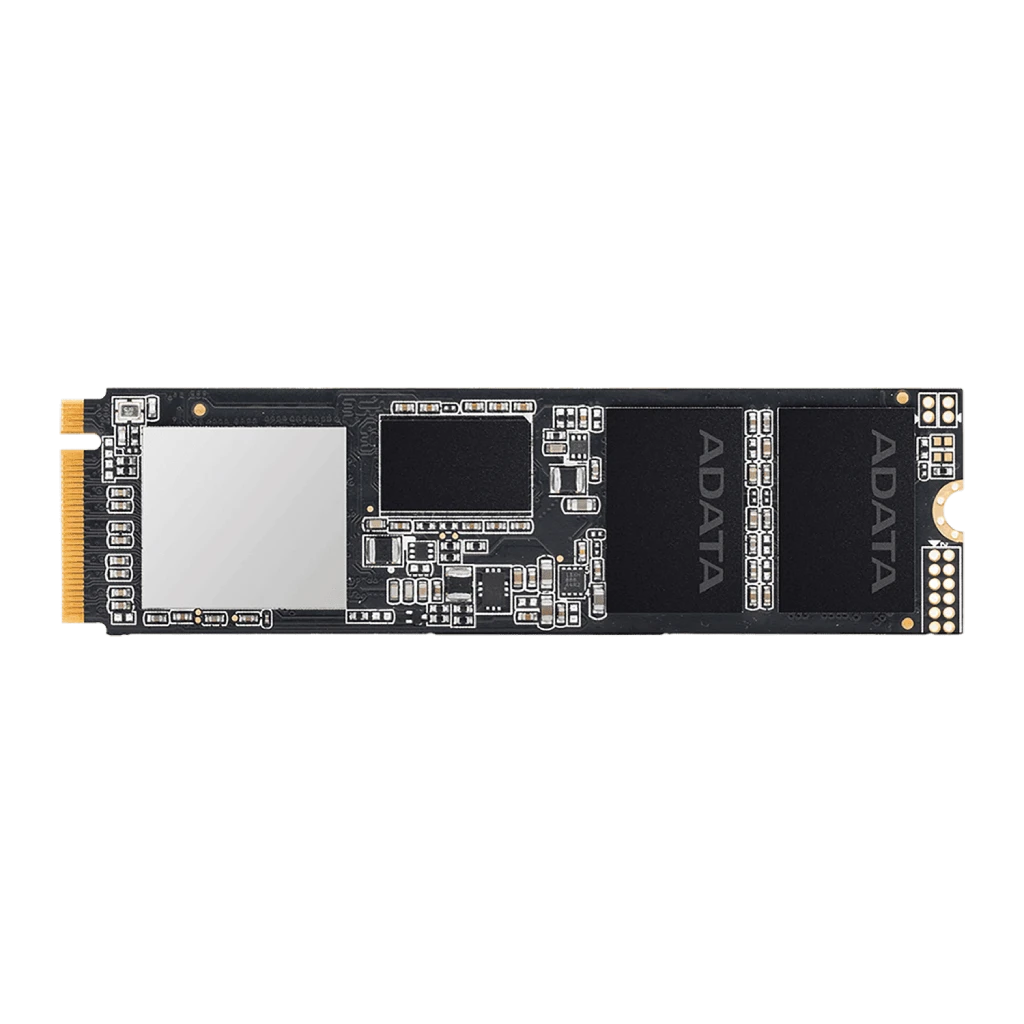

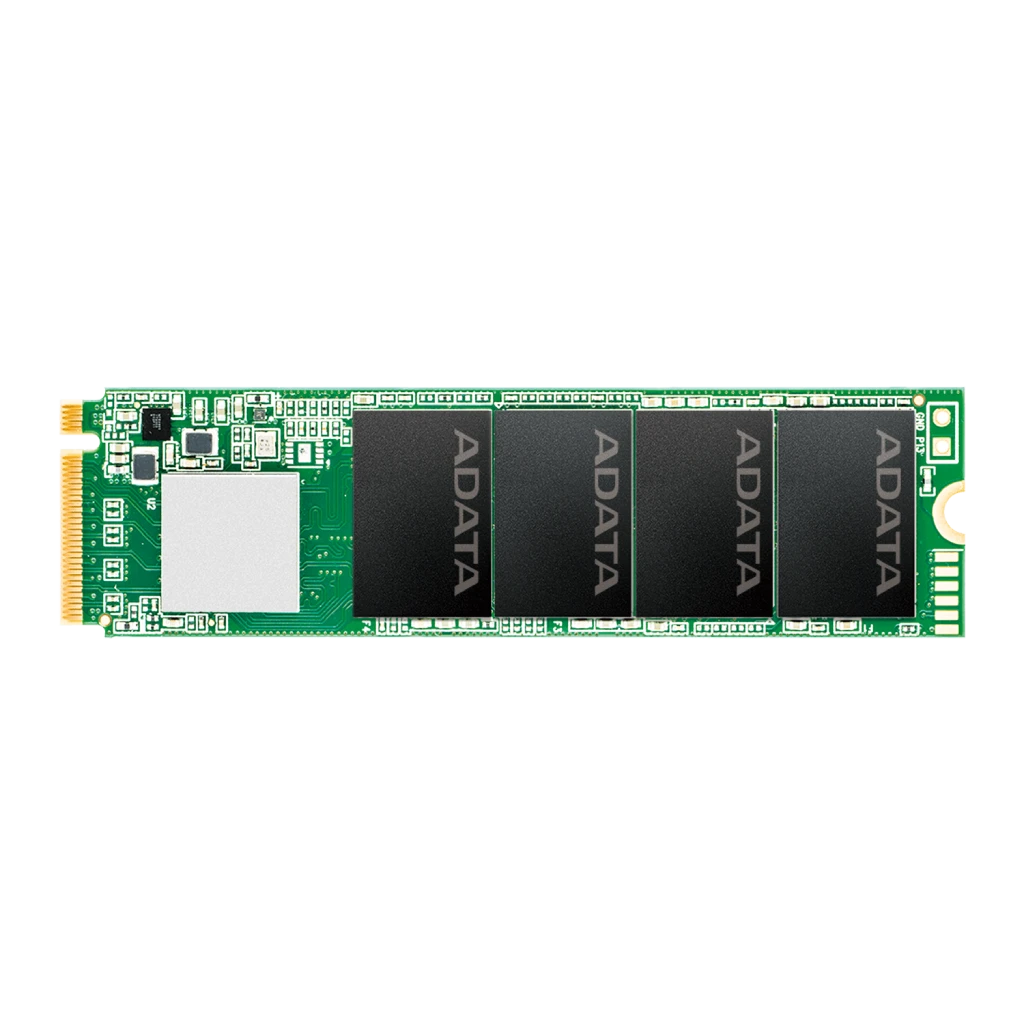

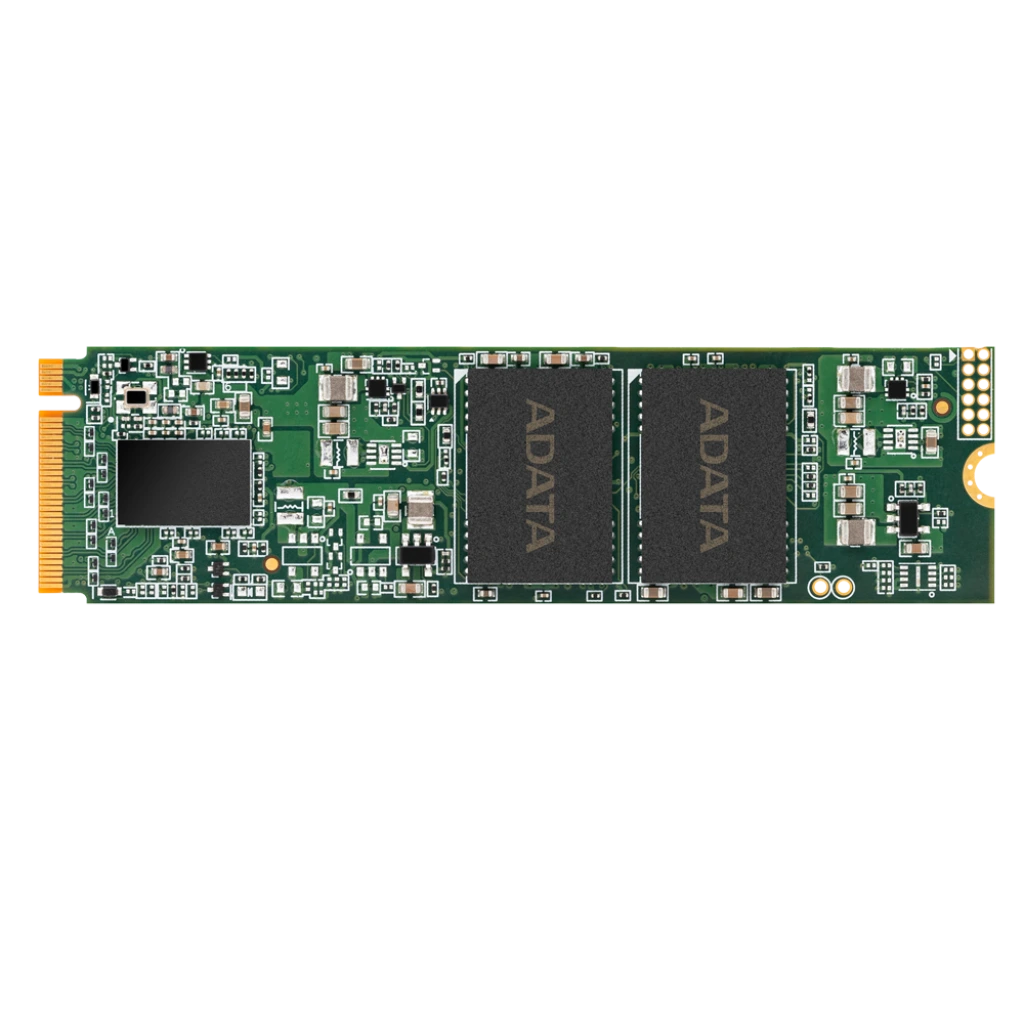

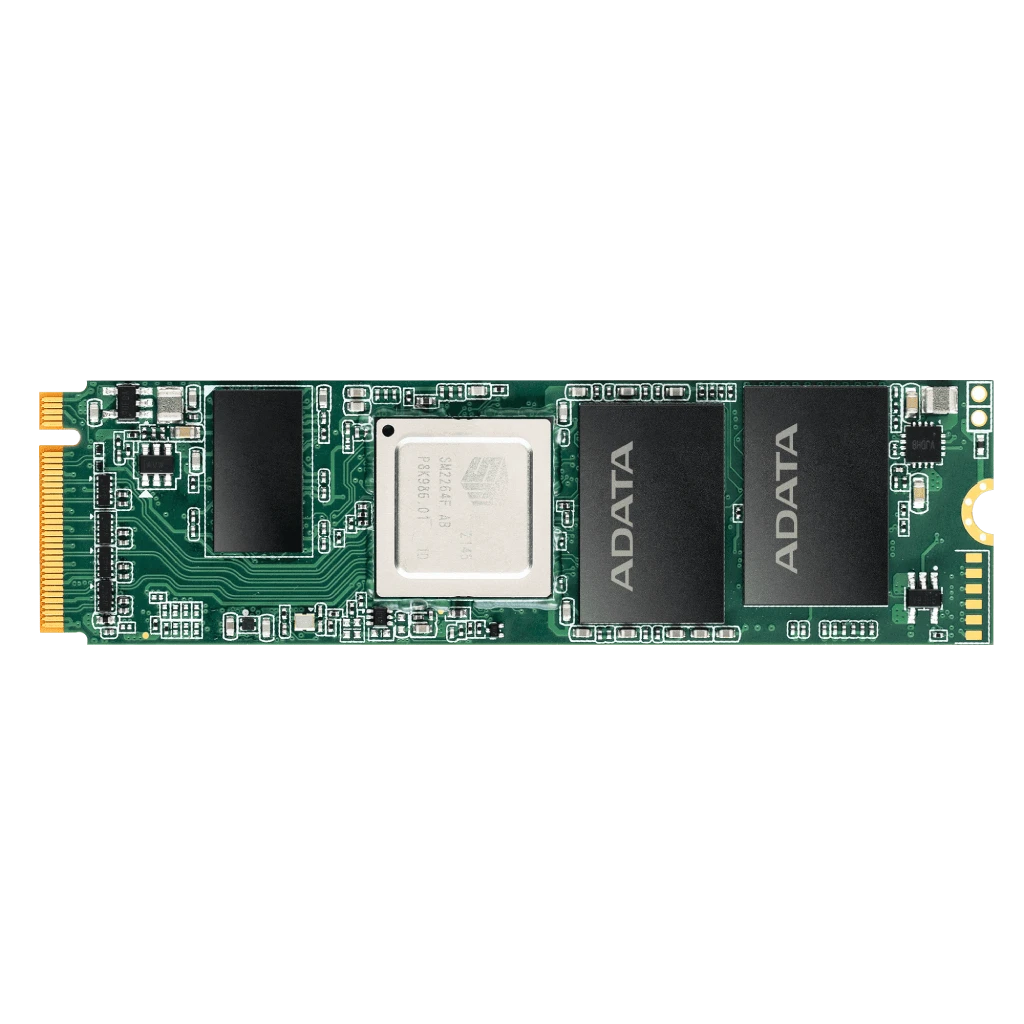

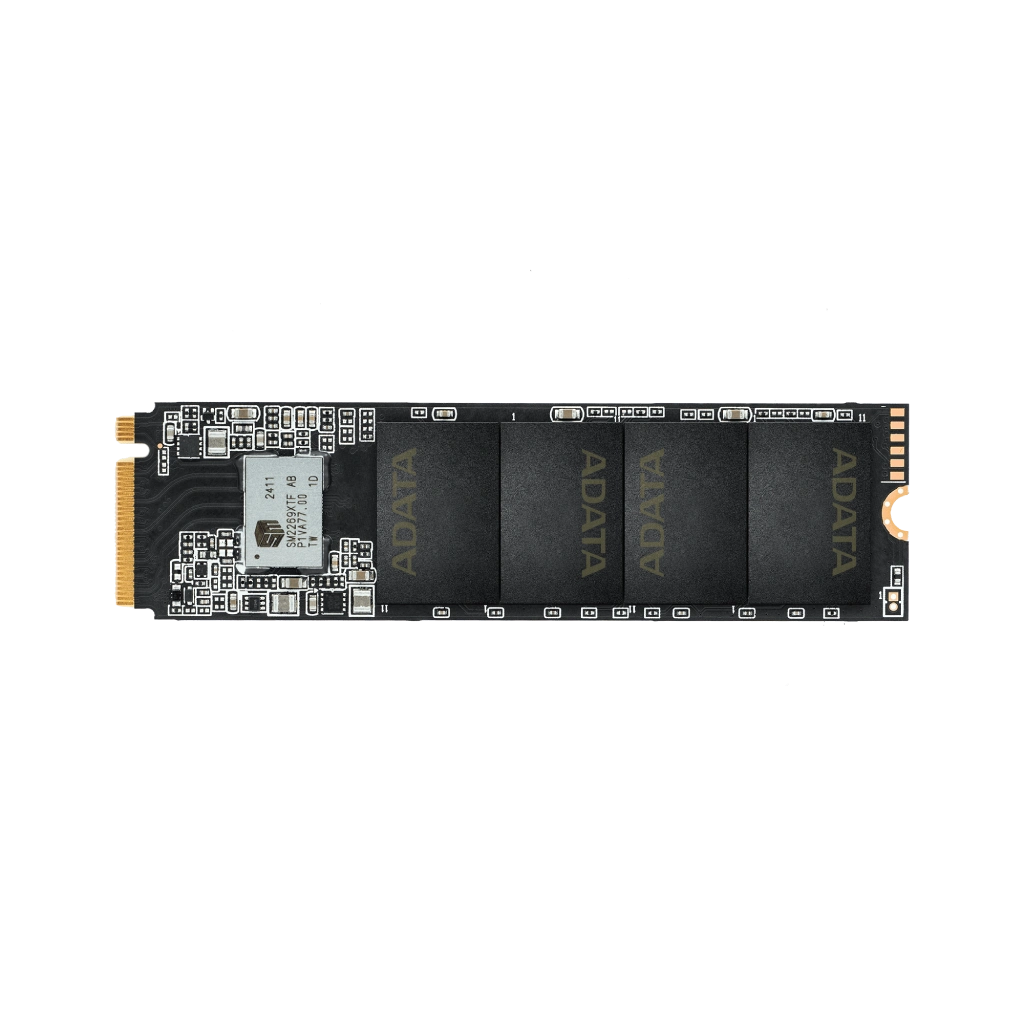

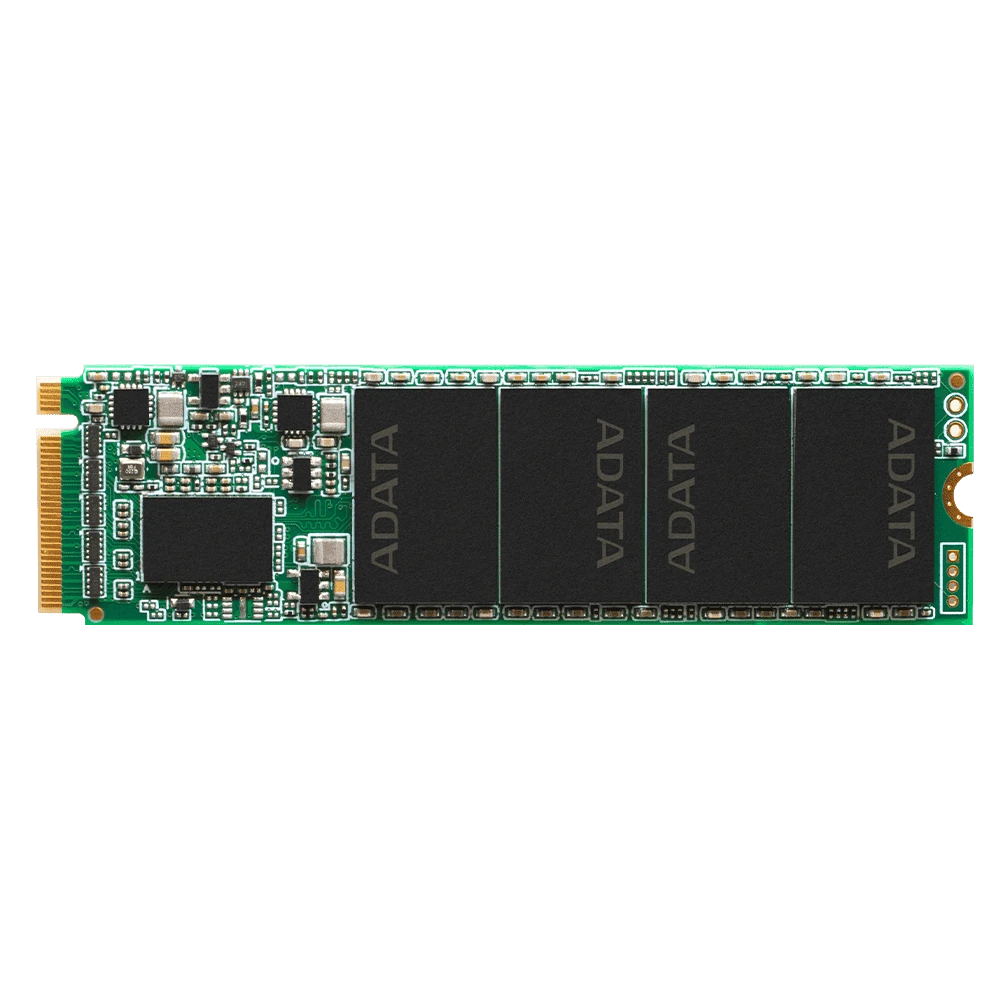

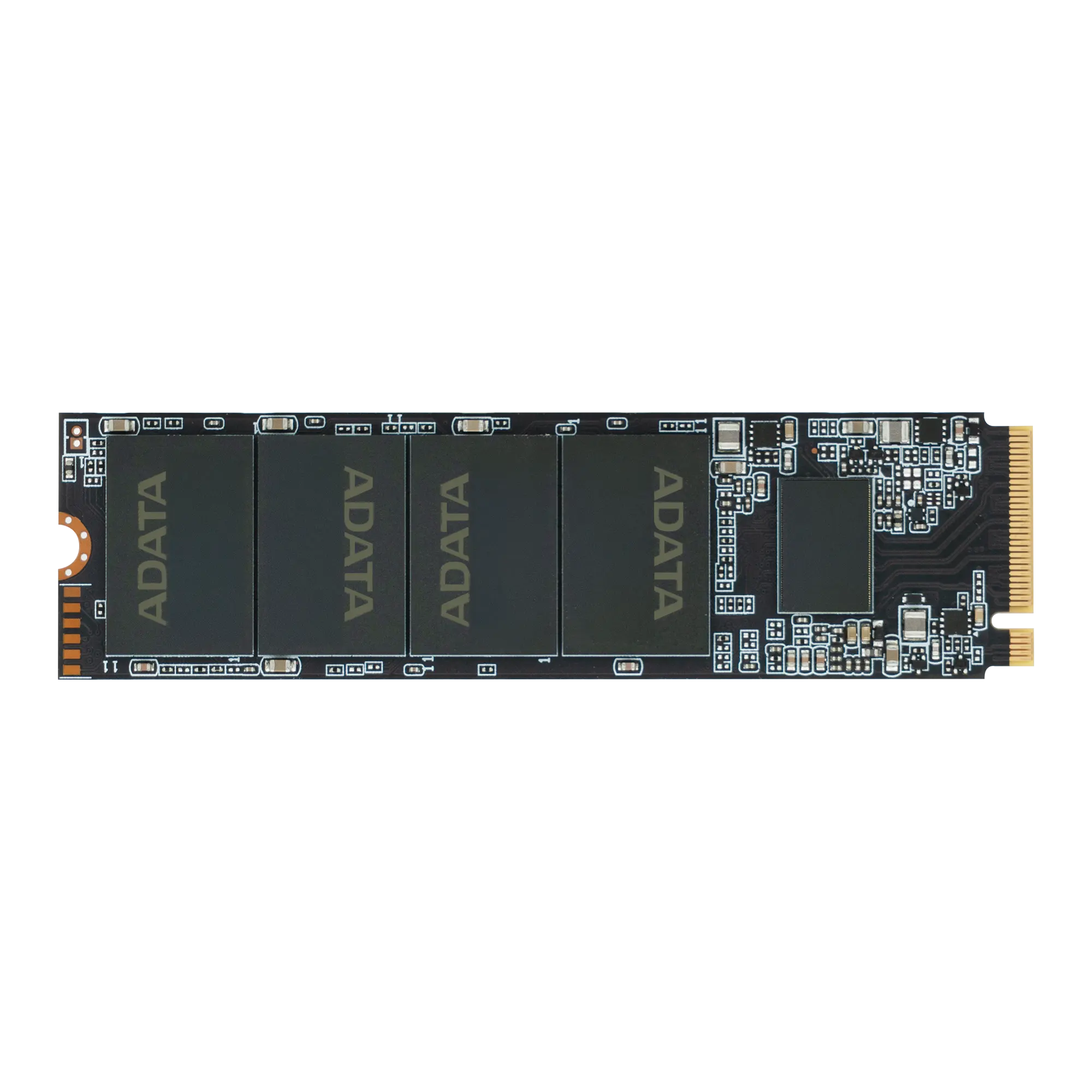

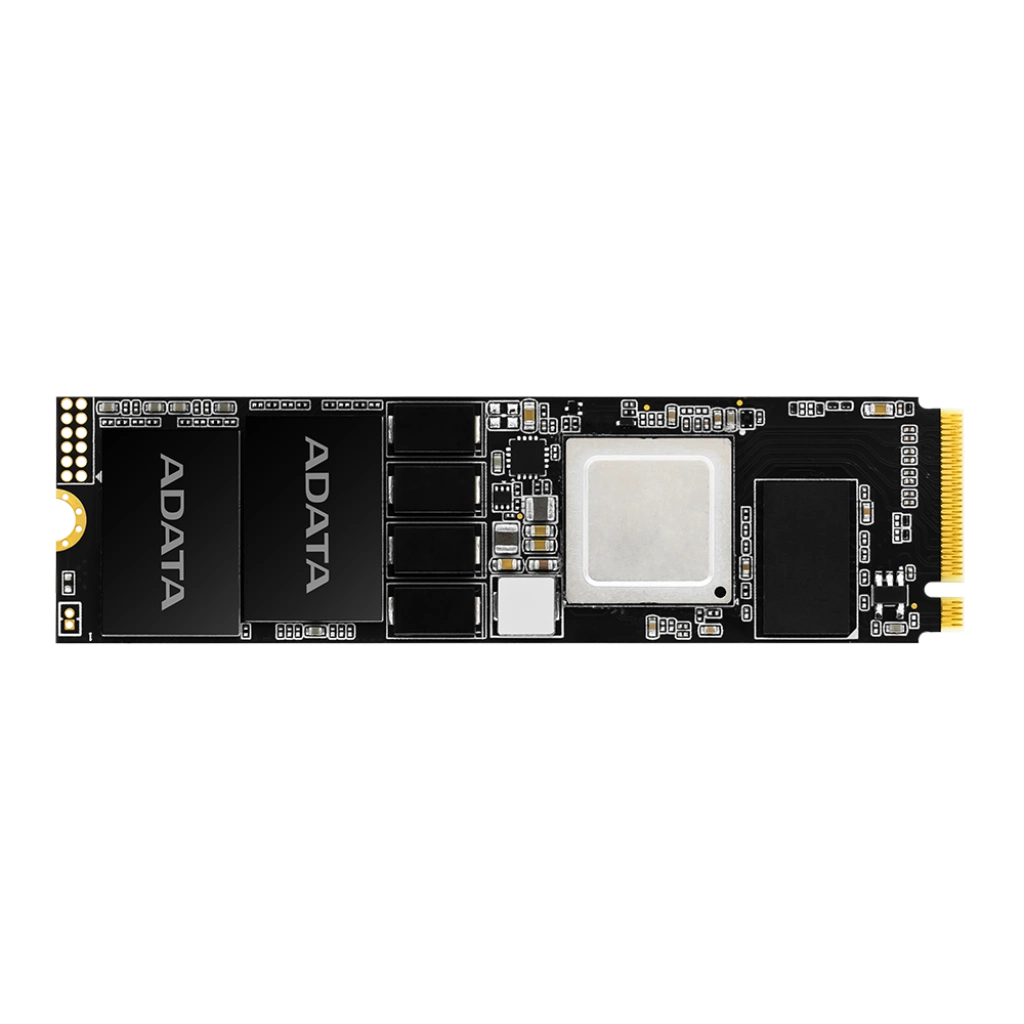

Maximum Throughput & Scalable Capacity for High-Density Edge & OEM Architectures PRESTONICs presents ADATA Industrial M.2 2280 PCIe SSDs, engineered to deliver top-tier NVMe storage performance, massive sequential bandwidth, and high-density storage capacity in the standard 22mm x 80mm form factor. Built for compute-heavy industrial platforms, edge servers, and high-resolution imaging systems, this lineup features strict Bill of Materials (BOM) locking, hardware-level security, and dedicated Project Protection for long-lifecycle OEM programs.
ADATA Industrial M.2 2280 PCIe SSDs integrate advanced high-speed controller designs with ruggedized protection:
Key Engineering Highlights:
High-Bandwidth PCIe Interface: Supporting ultra-fast PCIe Gen4 x4 (up to 7000 MB/s) and field-proven PCIe Gen3 x4 configurations over the NVMe protocol, delivering extreme sequential throughput and high random IOPS for heavy parallel workloads.

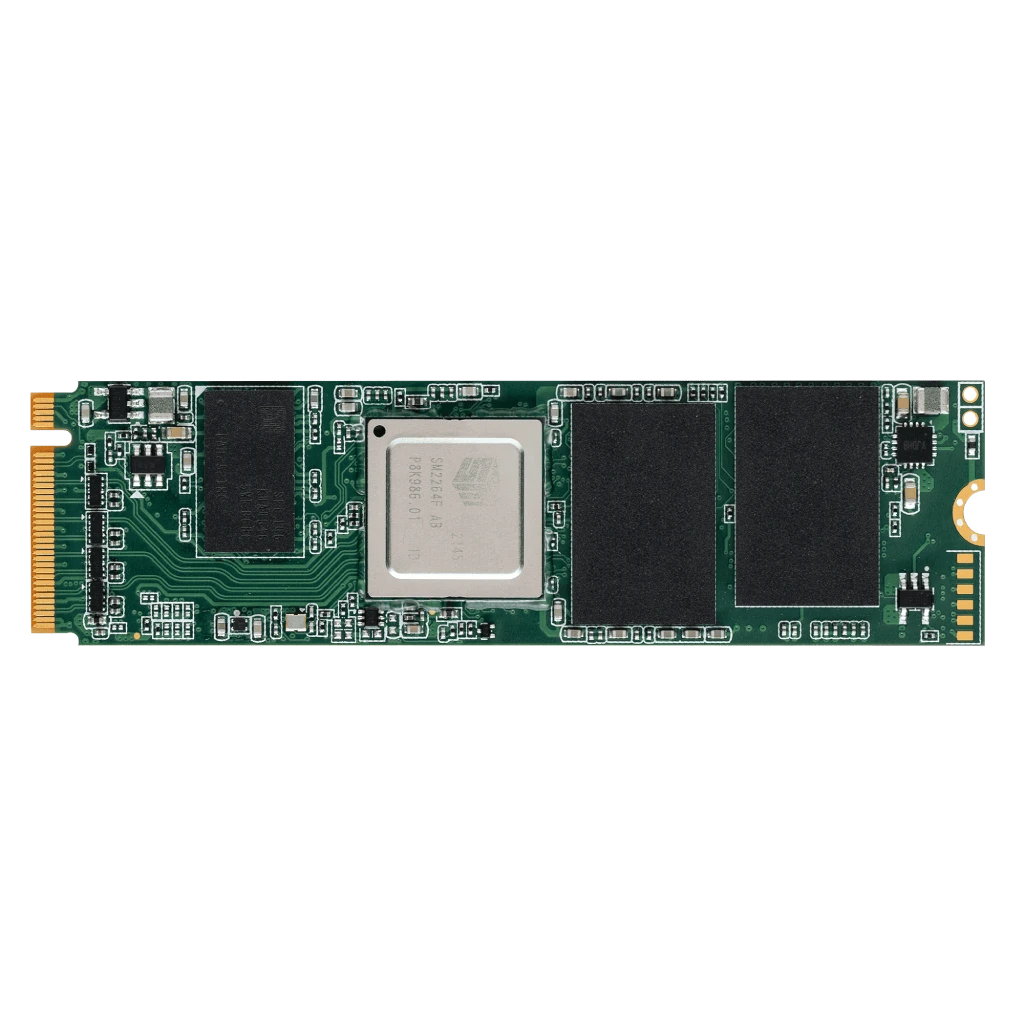

Standard M.2 2280 Footprint: The standard 22mm x 80mm form factor provides ample board space for multi-channel flash controllers, high-capacity 3D NAND arrays, integrated DRAM cache, and hardware PLP componentry.
Hardware Power Loss Protection (PLP): Integrated hardware PLP circuitry with backup tantalum capacitors ensures in-flight cache data is committed to non-volatile memory during unexpected system power loss.
Wide-Temperature Endurance: Validated and thermally screened to operate continuously across extreme industrial ranges from -40°C to +85°C, preventing thermal throttling in fanless, sealed enclosures.
Industrial Protection & Security: Features 30µ” gold finger contact plating for connector wear resistance, ASTM B809-95 compliant anti-sulfurization resistors, hardware AES 256-bit encryption, TCG Opal 2.0, and A+ SLC options for write endurance up to 100K P/E cycles.
Technical Specifications Summary:
Interfaces & Protocols: PCIe Gen4 x4 / PCIe Gen3 x4, NVMe 1.3 / 1.4 compliant
Form Factor: M.2 2280 (22.0mm x 80.0mm x 3.5mm max)
Flash Technologies: Industrial 3D TLC (BiCS5), A+ SLC / pseudo-SLC
Capacity Spectrum: 128GB to 4TB+
Operating Temperatures: Standard Commercial (0°C to +70°C) / Industrial Wide Temp (-40°C to +85°C)
Data Security & Integrity: Hardware PLP, 30µ” Gold Plating, Anti-Sulfurization, Thermal Throttling Management, AES-256, TCG Opal 2.0, A+ SMART Health Monitoring
Target Applications: Optimized for high-density Edge AI compute nodes, heavy-duty Industrial PCs (IPC), Automated Optical Inspection (AOI), multi-camera machine vision platforms, enterprise network security appliances, aerospace/defense systems, and medical imaging servers.
