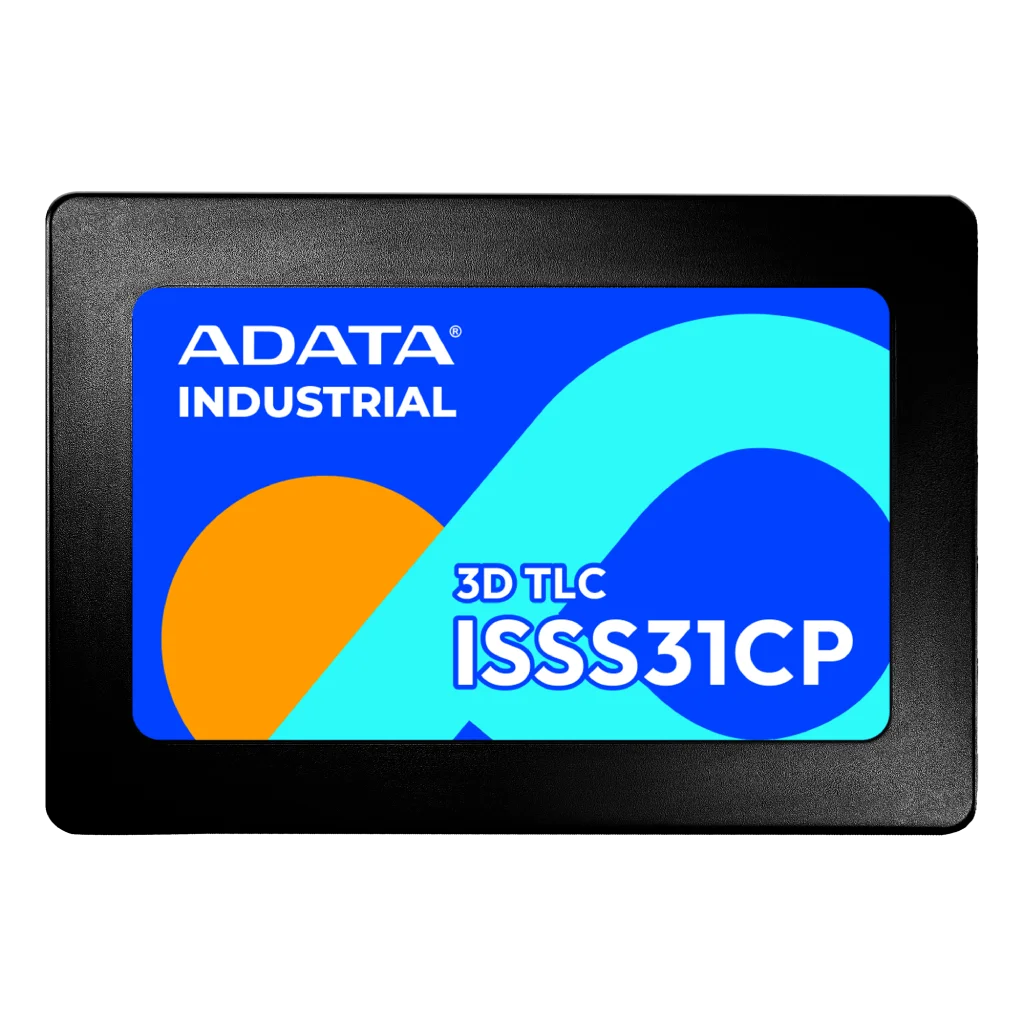

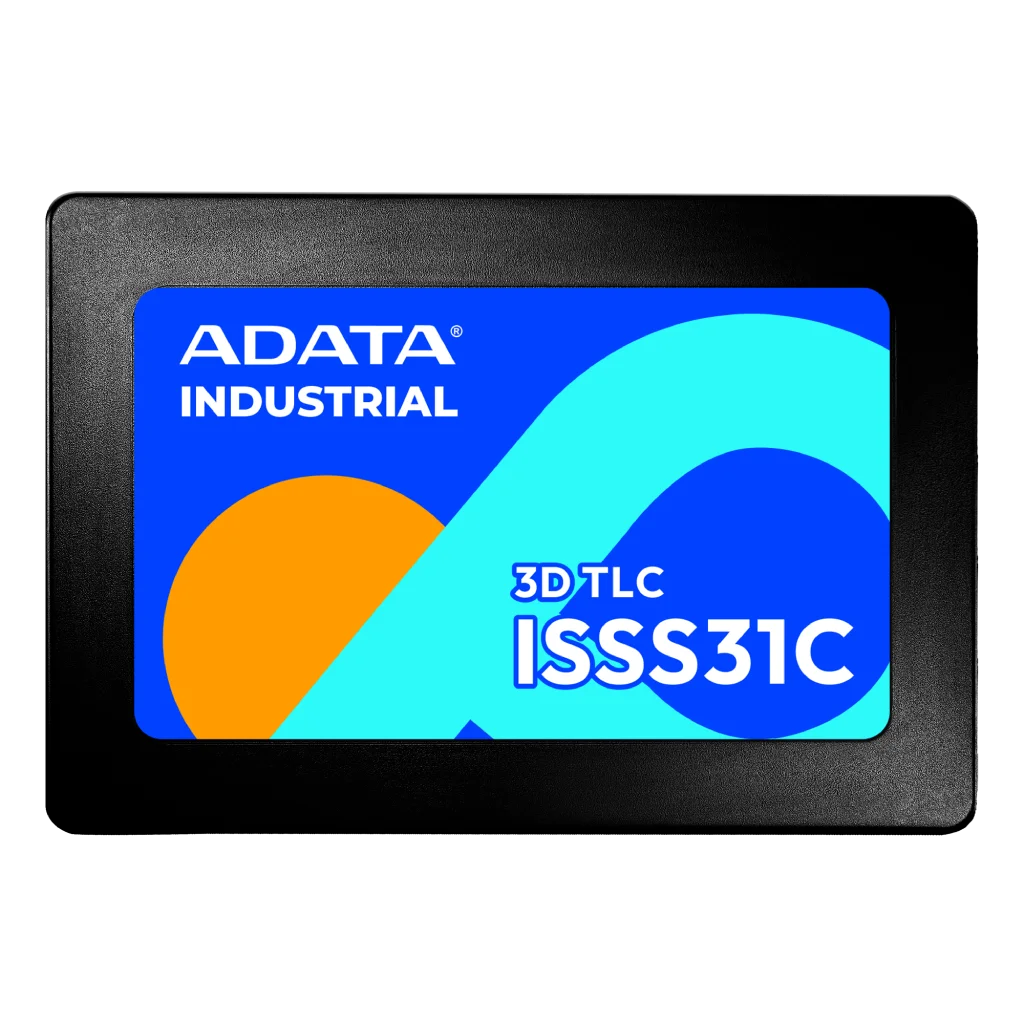

Ruggedized, High-Capacity SATA III Storage for Mission-Critical OEM Hardware PRESTONICs presents ADATA Industrial 2.5″ SATA SSDs, engineered to deliver rugged physical endurance, high data capacities, and absolute signal integrity for industrial platforms and embedded servers. Encased in a durable metal chassis, this series provides high drop and vibration resistance along with efficient thermal conduction over the industry-standard SATA III 6Gb/s interface. Backed by strict Bill of Materials (BOM) locking and dedicated Project Protection, these drives ensure seamless “Design-In” deployment across extended product lifecycles.
ADATA Industrial 2.5″ SATA SSDs integrate advanced hardware and firmware protection technologies:
Key Engineering Highlights:
Standard 2.5″ Metal Enclosure: Built with a high-durability metallic shell that acts as a natural heat spreader while protecting internal components from extreme mechanical shock, structural impact, and constant vibration.
Hardware Power Loss Protection (PLP): Integrated hardware voltage monitoring circuitry and high-reliability backup capacitors ensure in-flight DRAM cache data is safely committed to non-volatile flash memory during sudden power failure.
A+ SLC & High-Endurance 3D NAND: Powered by high-density 112-layer / BiCS5 3D TLC flash and optional proprietary A+ SLC technology, reaching up to 100K P/E cycles for write-heavy data logging and continuous 24/7 operation.
Wide-Temperature Endurance: Thermally screened and certified to operate reliably across extreme industrial temperature ranges from -40°C to +85°C.
Industrial Durability & Security: Equipped with 30µ” gold finger contact plating, ASTM B809-95 compliant anti-sulfurization resistors, hardware AES 256-bit encryption, TCG Opal 2.0 compliance, and End-to-End (E2E) Data Path Protection.
Technical Specifications Summary:
Interface & Protocol: SATA III 6Gb/s (SATA 3.2 compliant)
Form Factor: 2.5″ (7mm enclosure height)
Flash Technology: Industrial 3D TLC (BiCS5), A+ SLC / pseudo-SLC
Capacity Spectrum: 32GB to 2TB+
Operating Temperatures: Standard Commercial (0°C to +70°C) / Industrial Wide Temp (-40°C to +85°C)
Protection & Health: Hardware PLP, Metal Heat Dissipation Housing, Anti-Sulfurization, 30µ” Gold Plating, AES-256 / TCG Opal 2.0, A+ SMART Health Monitoring
Target Applications: Optimized for heavy-duty Industrial PCs (IPC), ruggedized transit and railway computing, defense and aerospace equipment, medical imaging systems, outdoor interactive kiosks, and industrial automation control racks.
