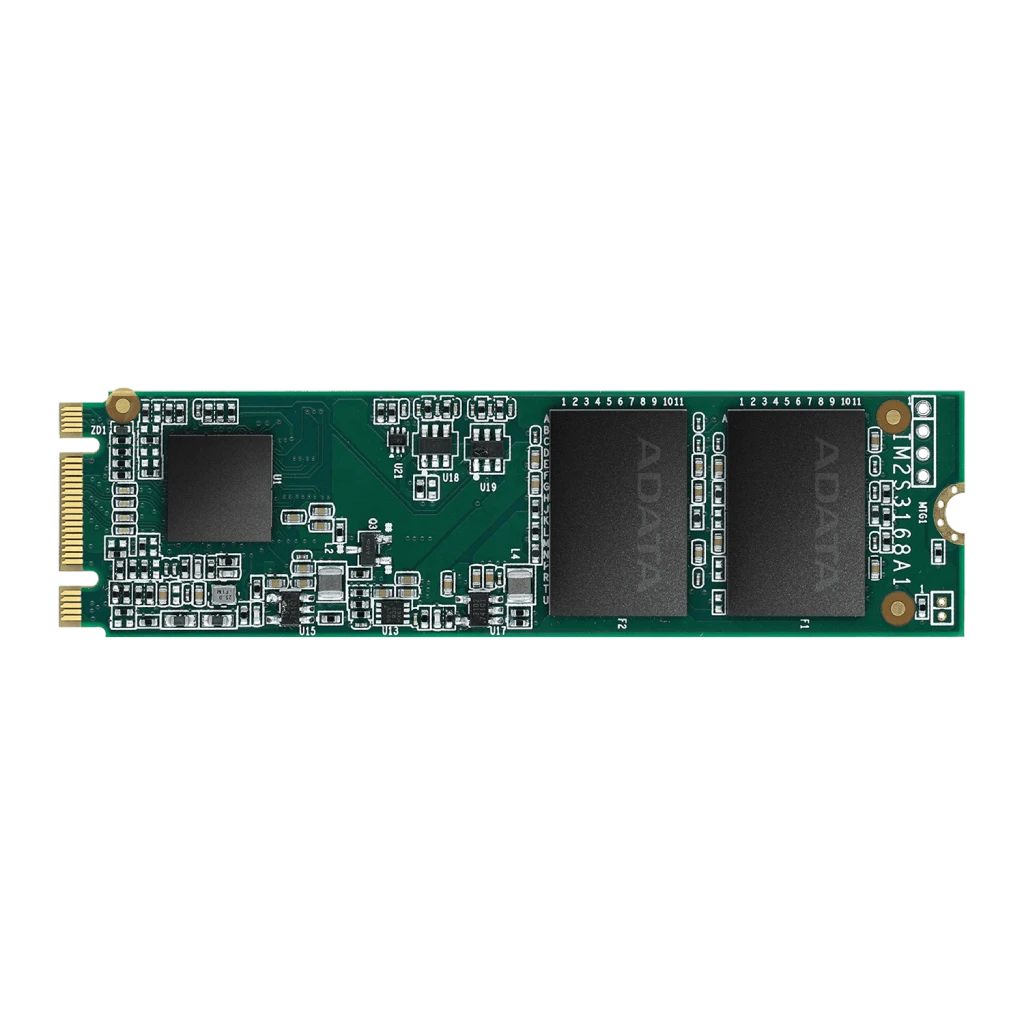

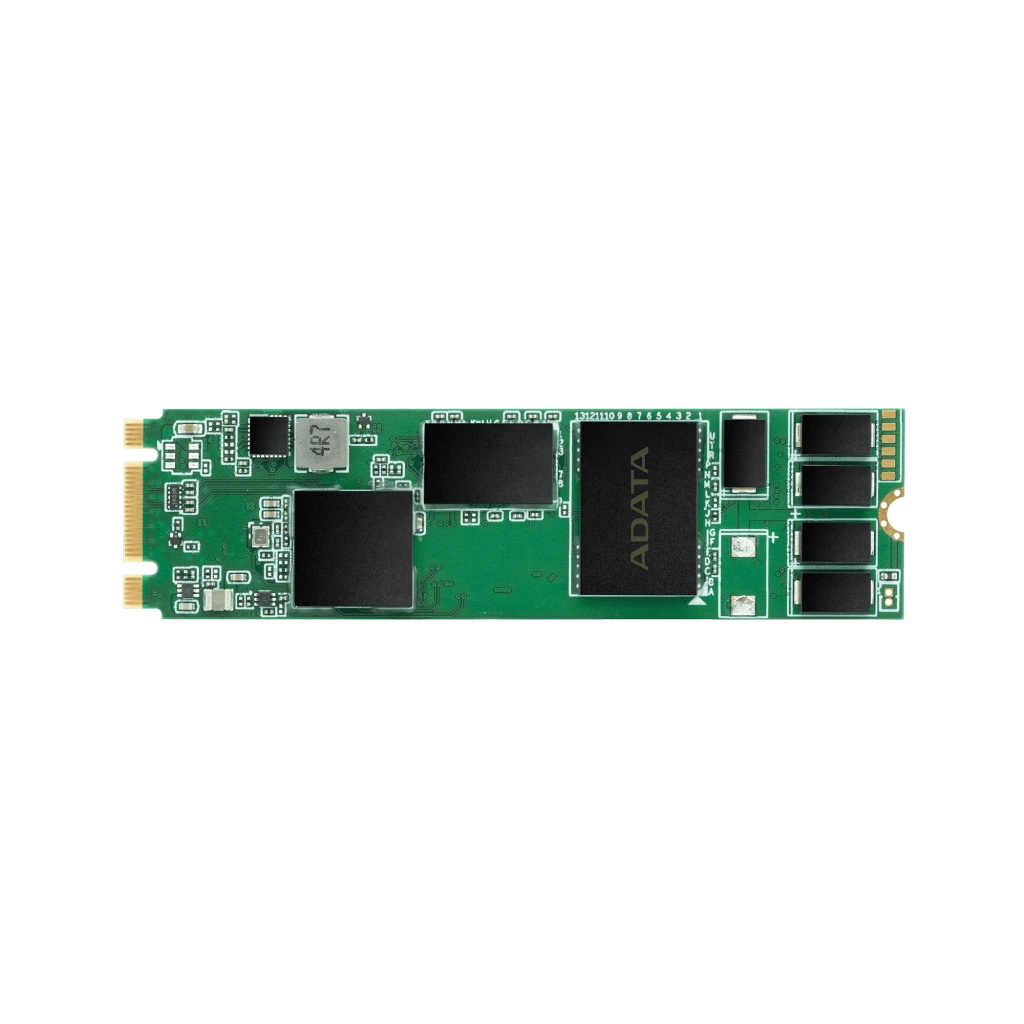

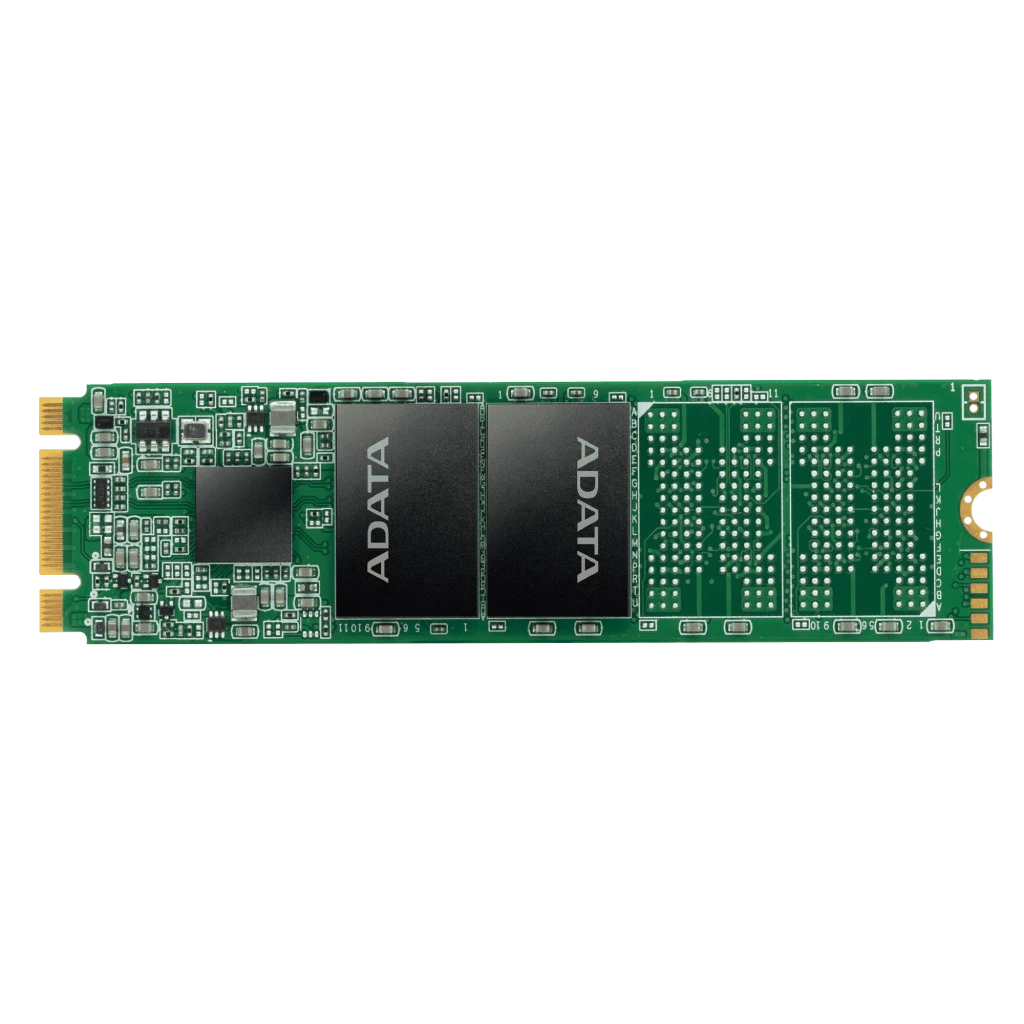

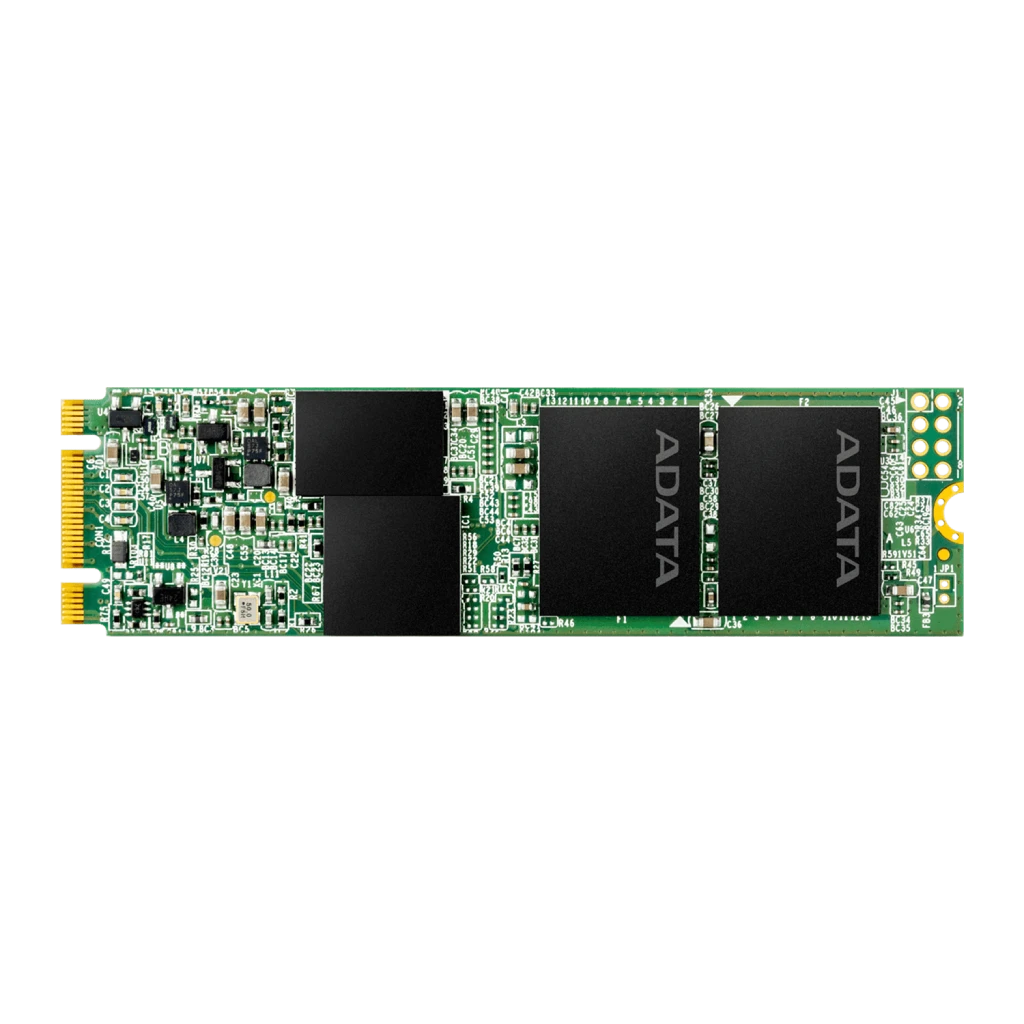

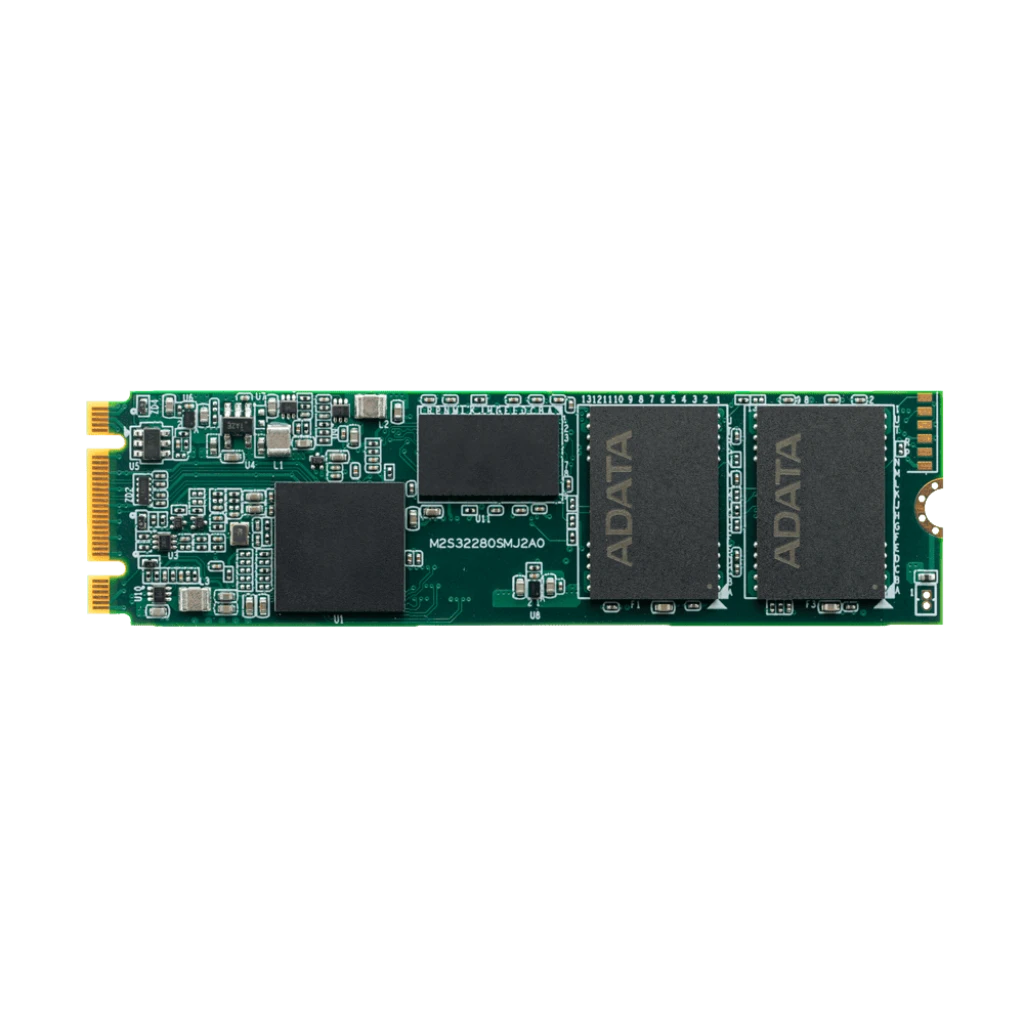

Reliable, Broadly Compatible SATA III Storage for Embedded & OEM Platforms PRESTONICs presents ADATA Industrial M.2 2280 SATA SSDs, engineered to deliver dependable flash storage and high data capacities in the widely adopted M.2 2280 (22mm x 80mm) form factor. Designed for industrial motherboards, fanless PCs, and embedded systems requiring reliable SATA III 6Gb/s performance, this series combines strict Bill of Materials (BOM) locking with long-term Project Protection for mission-critical OEM deployments.
ADATA Industrial M.2 2280 SATA SSDs integrate robust hardware and firmware protection technologies to maintain performance and data integrity under continuous operating workloads:
Key Engineering Highlights:
Standard M.2 2280 Form Factor: Measuring 22mm x 80mm, providing sufficient PCB surface area for multi-channel flash layouts, integrated DRAM cache, and hardware PLP componentry.
SATA III 6Gb/s Interface: Fully compliant with SATA 3.2 standards, ensuring maximum drop-in compatibility and stable performance across standard industrial motherboard architectures.
Hardware Power Loss Protection (PLP): Dedicated hardware voltage monitoring circuitry and backup capacitors ensure in-flight DRAM cache data is safely committed to non-volatile flash memory during unexpected power failures.
A+ SLC & High-Endurance 3D NAND: Powered by industrial 112-layer / BiCS5 3D TLC flash and optional proprietary A+ SLC technology, reaching up to 100K P/E cycles for write-intensive logging applications.
Wide-Temperature Endurance: Certified and thermally screened to operate continuously across extended industrial temperature ranges from -40°C to +85°C.
Industrial Protection & Security: Features 30µ” gold finger contact plating, ASTM B809-95 compliant anti-sulfurization resistors, hardware AES 256-bit encryption, TCG Opal 2.0 compliance, and End-to-End (E2E) Data Path Protection.
Technical Specifications Summary:
Interface & Protocol: SATA III 6Gb/s (SATA 3.2 compliant)
Form Factor: M.2 2280 (22.0mm x 80.0mm x 3.5mm max)
Flash Memory Technologies: Industrial 3D TLC (BiCS5), A+ SLC / pseudo-SLC
Capacity Spectrum: 64GB to 2TB+
Operating Temperatures: Standard Commercial (0°C to +70°C) / Industrial Wide Temp (-40°C to +85°C)
Protection & Security: Hardware PLP, 30µ” Gold Contacts, Anti-Sulfurization, Thermal Sensor, AES-256, TCG Opal 2.0, A+ SMART Health Monitoring
Target Applications: Optimized for Industrial PCs (IPC), embedded motherboards (ATX/Micro-ATX/Mini-ITX), automated optical inspection (AOI), medical equipment, railway telematics, and digital signage controllers.
