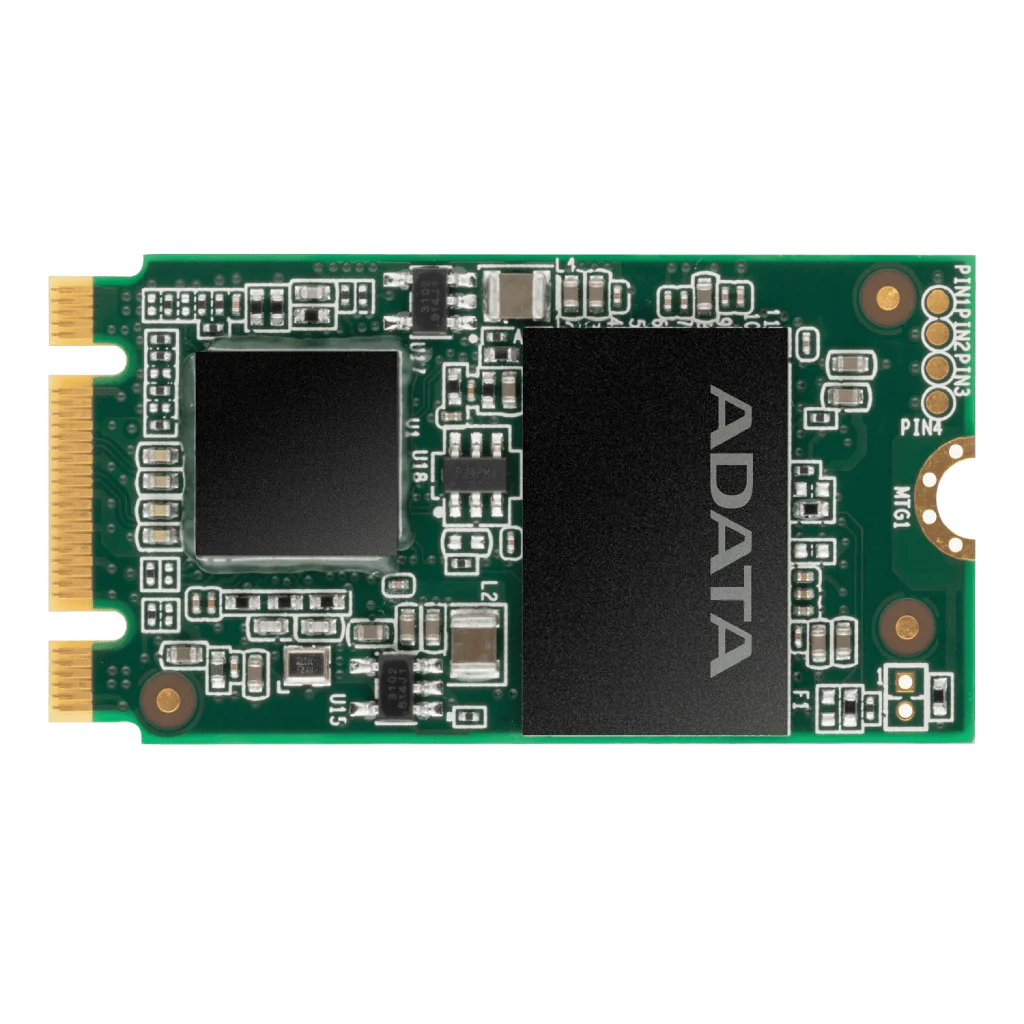

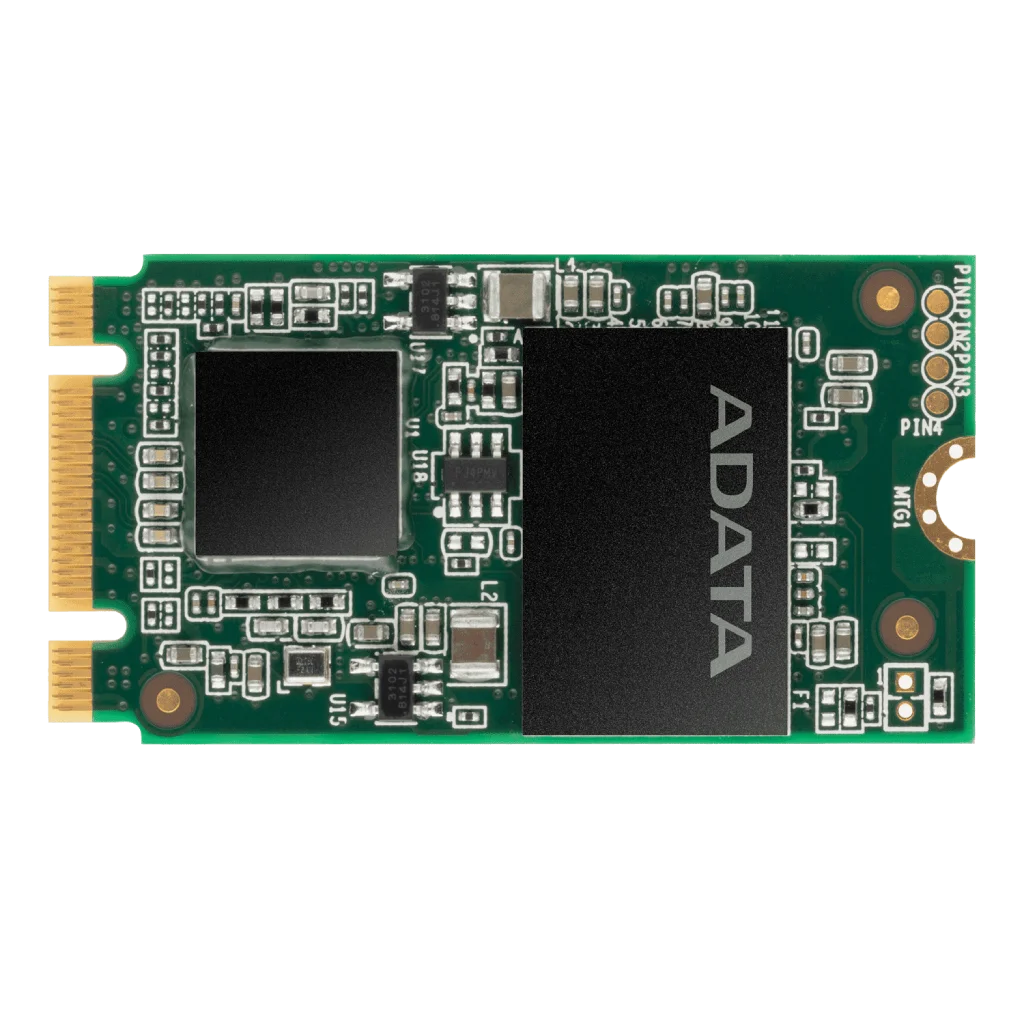

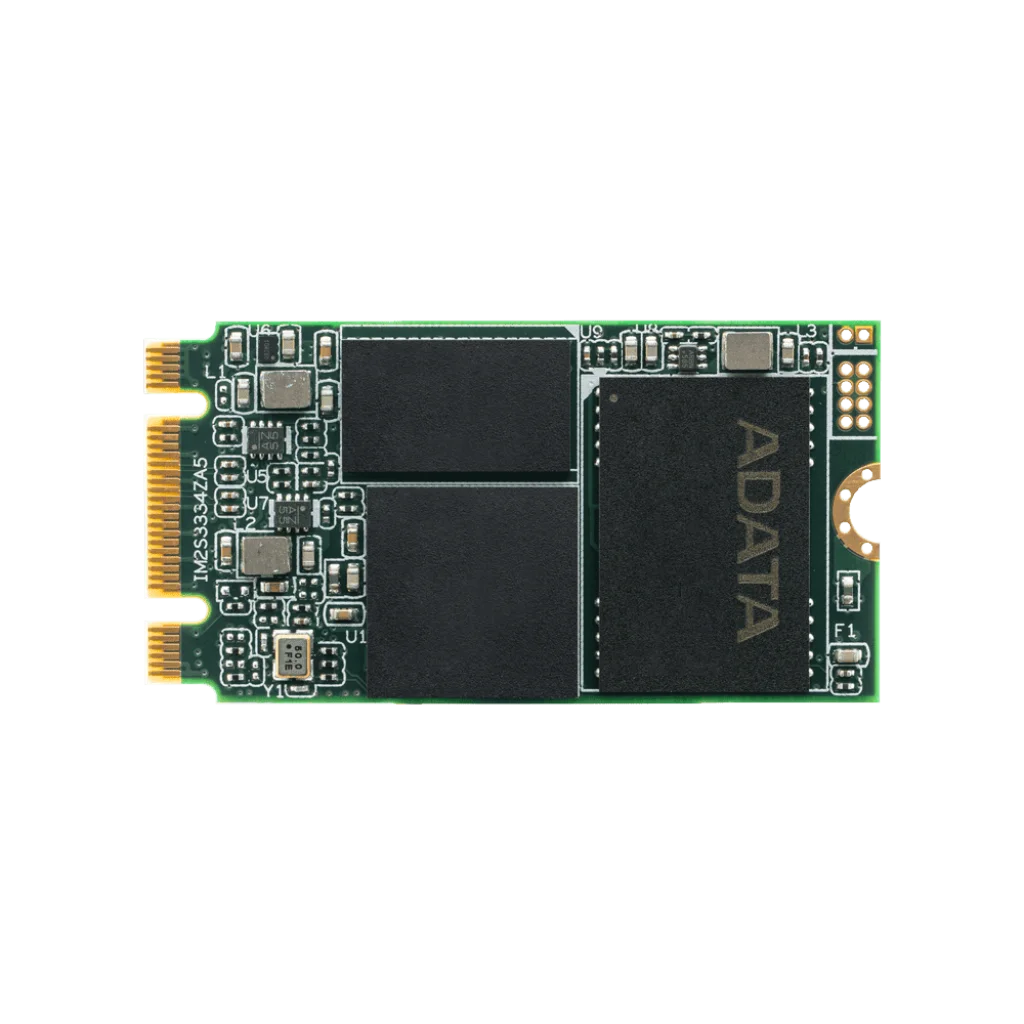

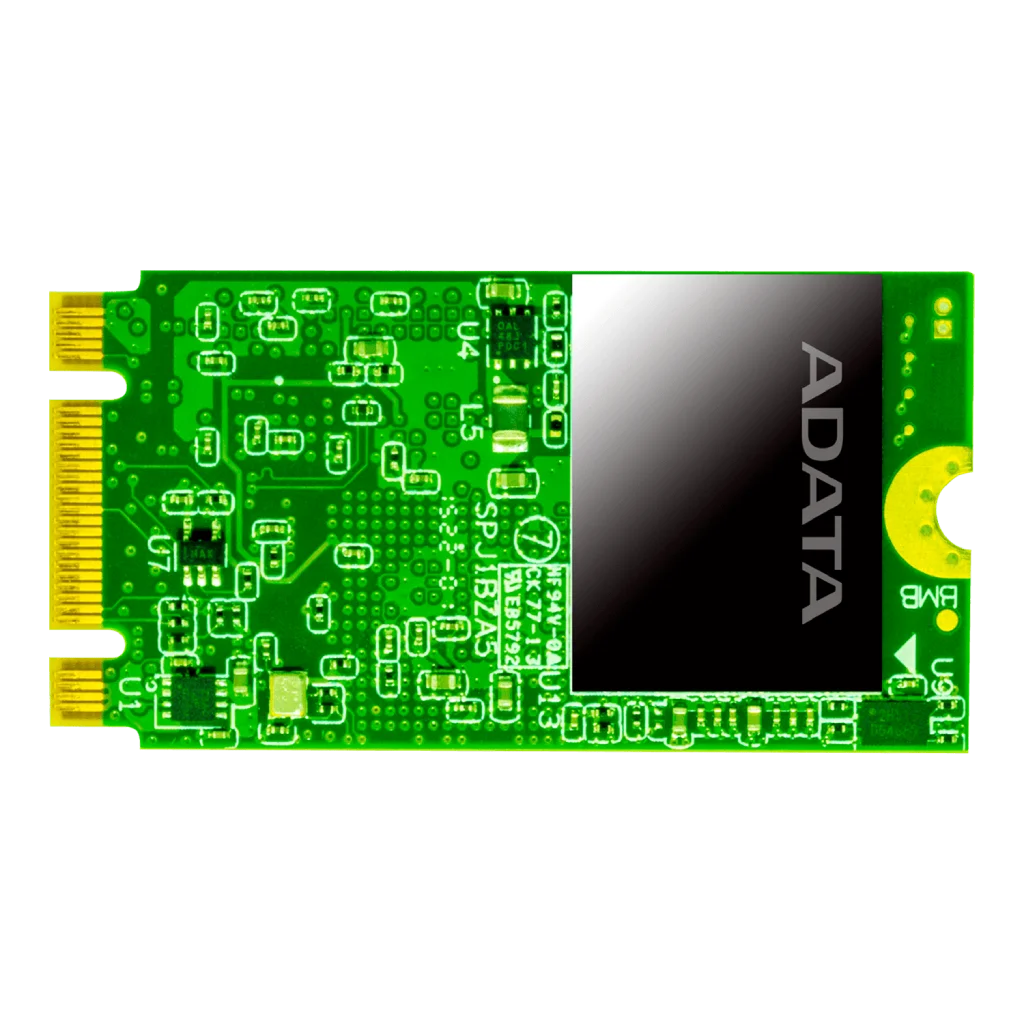

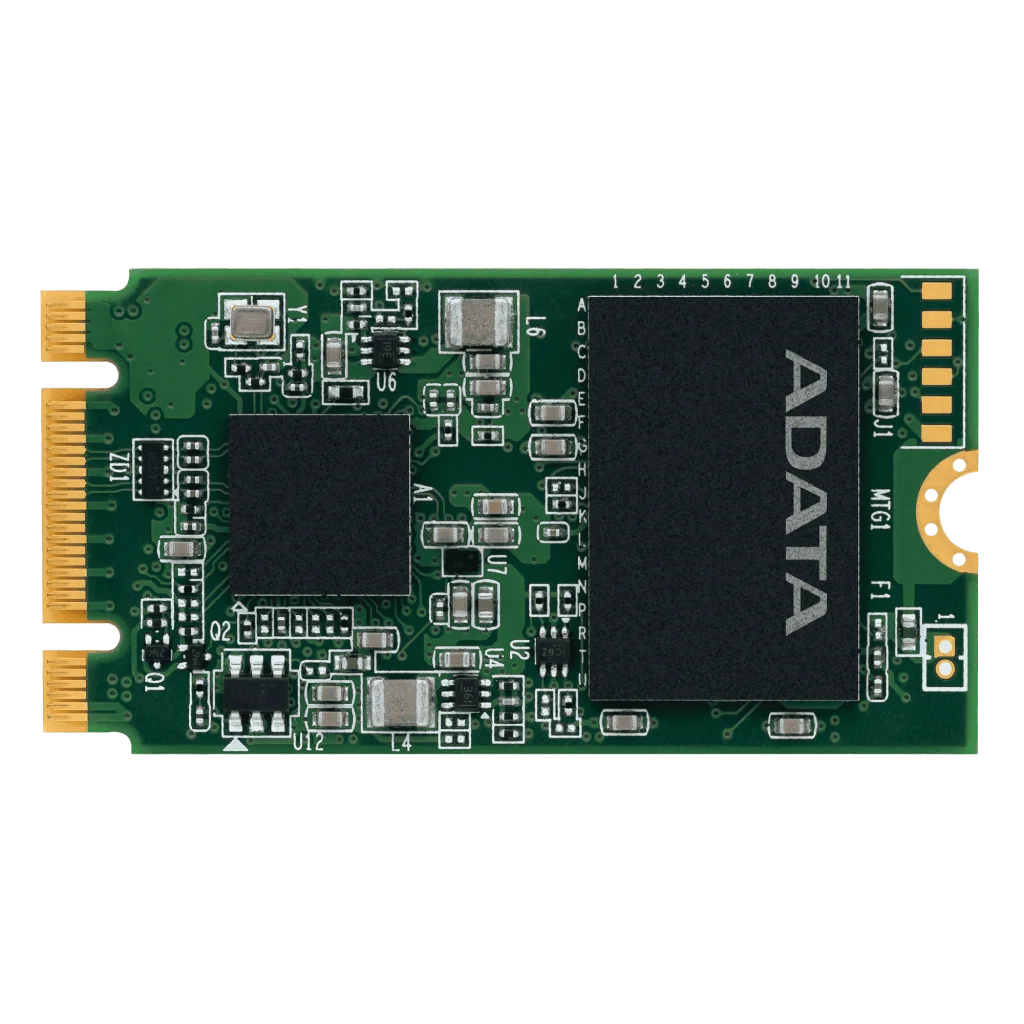

Space-Saving, High-Compatibility SATA Storage for Embedded & OEM Hardware PRESTONICs presents ADATA Industrial M.2 2242 SATA SSDs, engineered to deliver reliable SATA III 6Gb/s performance in a compact 22mm x 42mm M.2 footprint. Designed specifically for low-profile industrial motherboards, Single Board Computers (SBCs), and fanless IoT controllers where space is at a premium, this lineup features strict Bill of Materials (BOM) locking and dedicated Project Protection across extended production lifecycles.
ADATA Industrial M.2 2242 SATA SSDs combine efficient power usage with industrial-grade environmental resilience:
Key Engineering Highlights:
Compact M.2 2242 Form Factor: Measures just 22mm x 42mm, enabling direct integration onto space-constrained 3.5″ SBCs, thin clients, and slim embedded carrier boards without cable routing.
SATA III 6Gb/s Interface: Fully compliant with SATA 3.2 standards, providing reliable throughput and seamless drop-in legacy/current hardware compatibility.
Hardware Power Loss Protection (PLP): Select models integrate dedicated hardware PLP circuitry with backup capacitors to safely write in-flight DRAM cache data to non-volatile flash memory during unexpected power failures.
A+ SLC & High-Endurance 3D NAND: Utilizing industrial 3D TLC flash and optional proprietary A+ SLC technology to achieve up to 100K P/E cycles for heavy data-logging application durability.
Wide-Temperature Endurance: Validated and thermally screened to operate continuously across extreme industrial temperature ranges from -40°C to +85°C.
Industrial Durability & Security: Features 30µ” gold finger contact plating for connector wear resistance, ASTM B809-95 compliant anti-sulfurization resistors, hardware AES 256-bit encryption, and TCG Opal 2.0 compliance.
Technical Specifications Summary:
Interface & Protocol: SATA III 6Gb/s (SATA 3.2 compliant)
Form Factor: M.2 2242 (22.0mm x 42.0mm x 3.5mm max)
Flash Memory Technologies: Industrial 3D TLC (BiCS5), A+ SLC / pseudo-SLC
Capacity Spectrum: 32GB to 1TB+
Operating Temperatures: Standard Commercial (0°C to +70°C) / Industrial Wide Temp (-40°C to +85°C)
Protection & Security: Hardware PLP (select models), 30µ” Gold Contacts, Anti-Sulfurization, Thermal Sensor, AES-256, TCG Opal 2.0, A+ SMART Health Monitoring
Target Applications: Optimized for 3.5″ Single Board Computers (SBCs), COM Express carrier boards, fanless IoT gateways, interactive kiosks, digital signage media players, and compact medical equipment.
