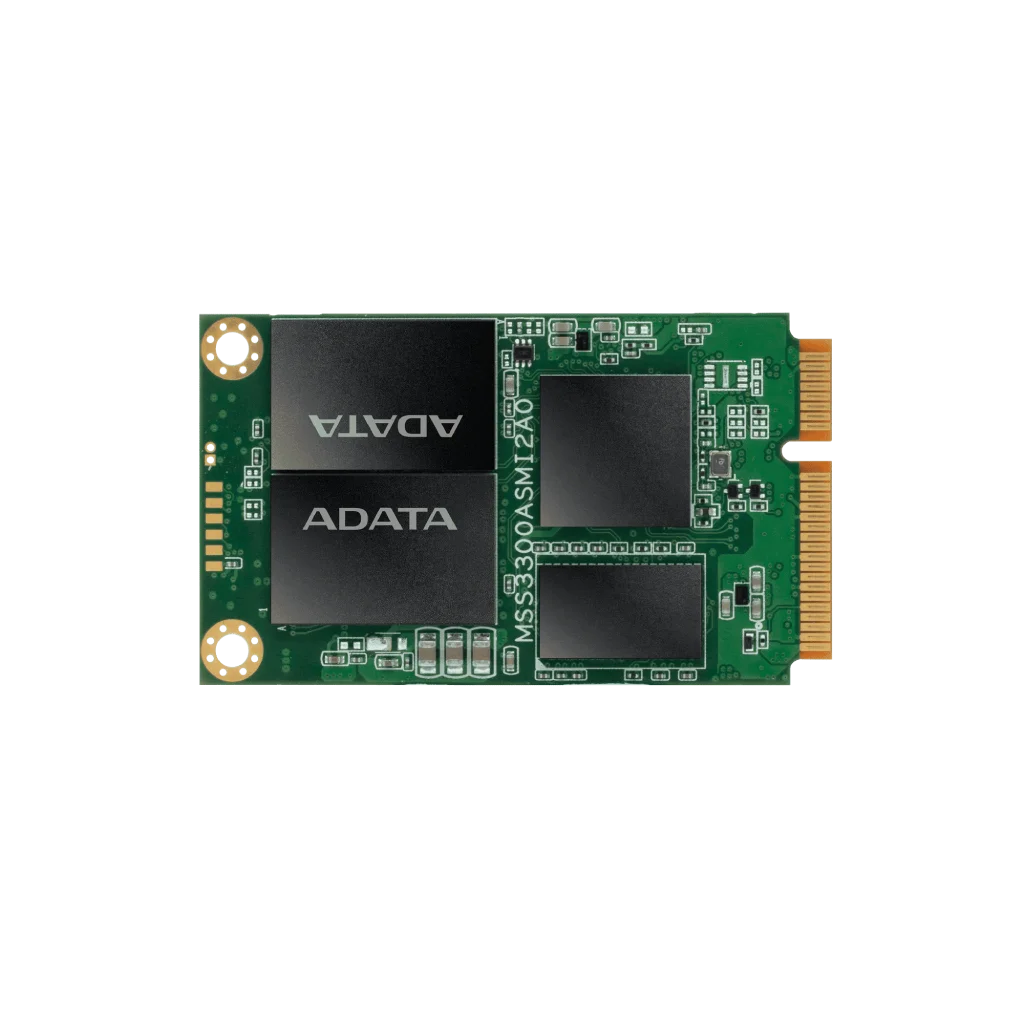

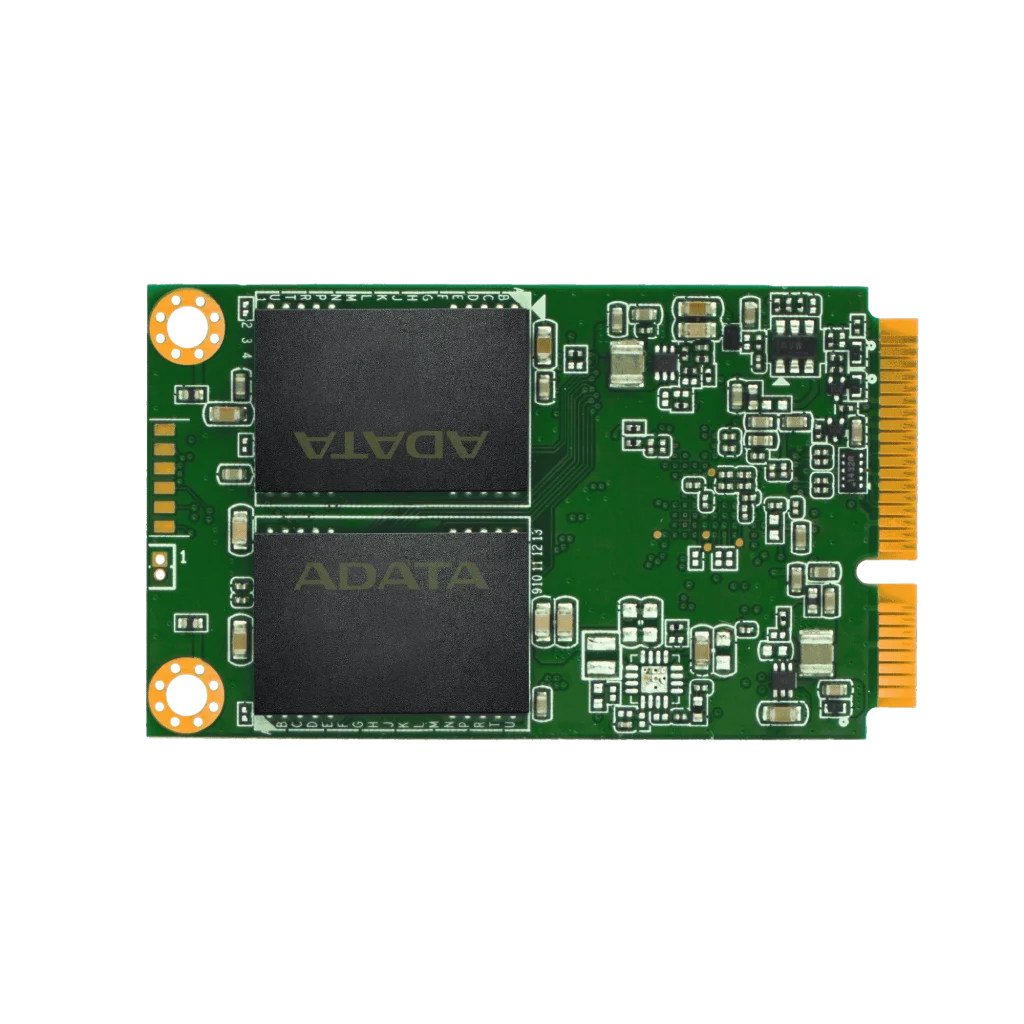

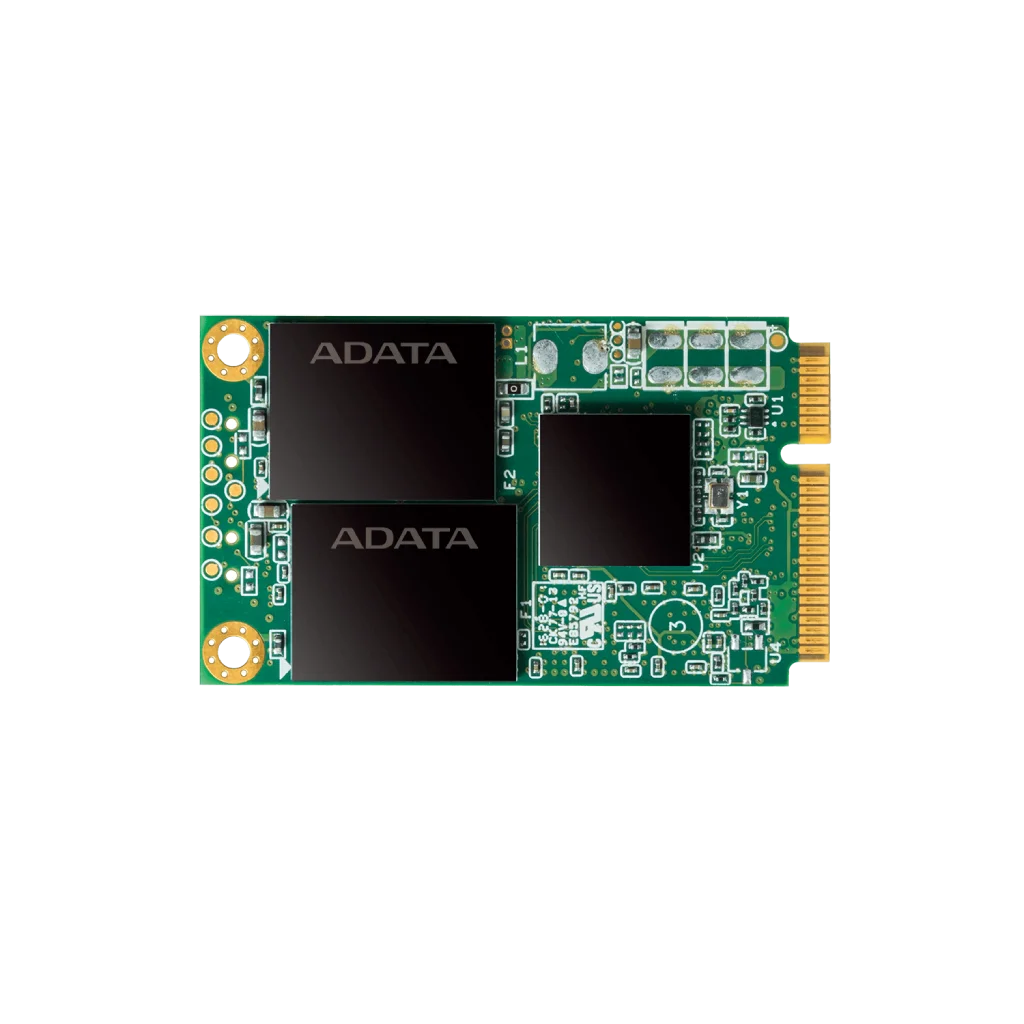

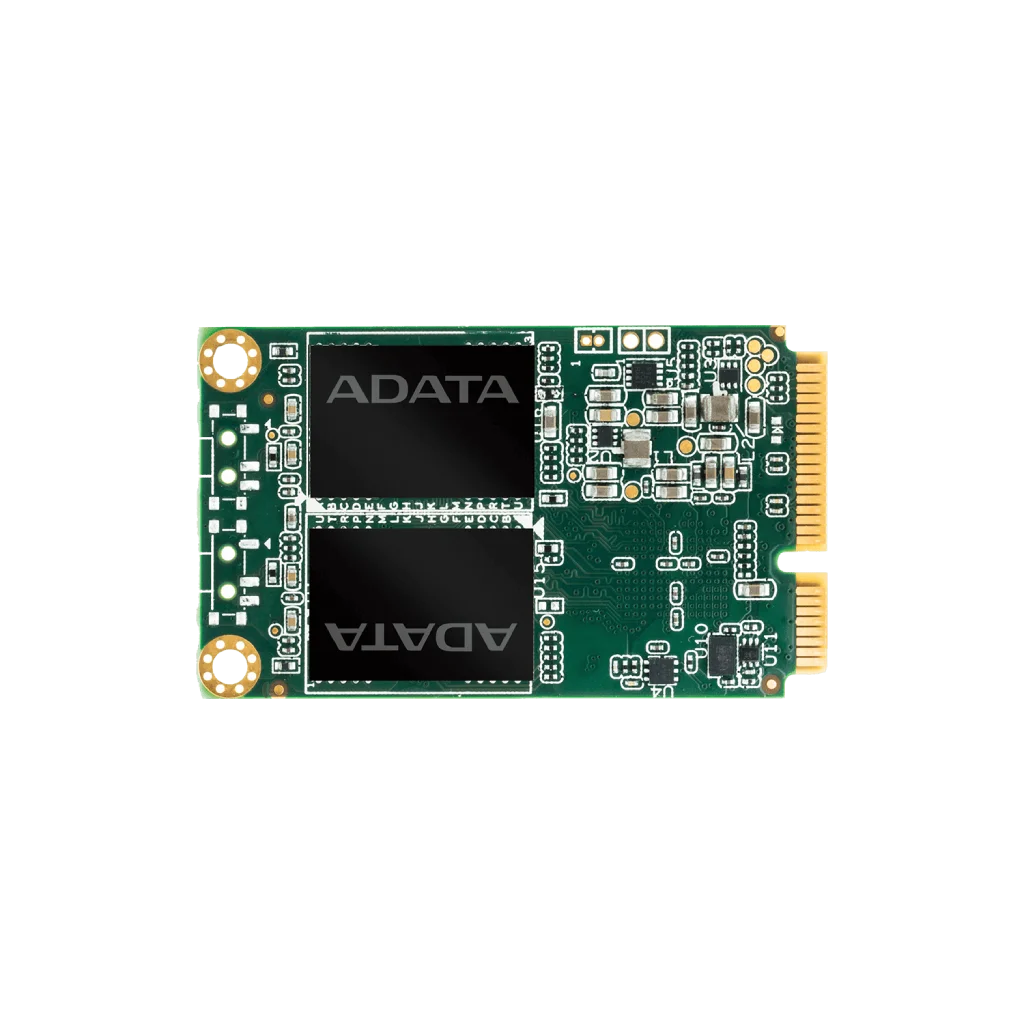

Space-Saving, High-Endurance SATA Storage for Embedded & Legacy Systems PRESTONICs presents ADATA Industrial mSATA SSDs, delivering high-reliability SATA III 6Gb/s flash storage in a proven JEDEC MO-300 form factor. Designed specifically for low-profile embedded motherboards, legacy industrial hardware, and space-limited mobile applications, this series features strict Bill of Materials (BOM) locking and dedicated Project Protection to ensure drop-in hardware continuity across extended product lifecycles.
ADATA Industrial mSATA SSDs combine miniaturized physical footprint with full industrial-grade environmental and electrical protection:
Key Engineering Highlights:
JEDEC MO-300 mSATA Form Factor: Compact dimensions (50.8mm x 29.85mm) allowing secure, direct socket mounting on legacy embedded boards without cables or routing constraints.
Hardware Power Loss Protection (PLP): Integrated hardware voltage monitoring circuitry and backup capacitors ensure in-flight DRAM cache data is safely committed to non-volatile flash memory during sudden power outages.
A+ SLC & High-Endurance 3D NAND: Utilizing industrial 3D TLC flash and optional proprietary A+ SLC technology to achieve up to 100K P/E cycles for continuous data logging and OS boot durability.
Wide-Temperature Resilience: Fully certified and thermally screened to operate reliably across extreme industrial temperature ranges from -40°C to +85°C.
Industrial Durability & Security: Features 30µ” gold finger contact plating for connector wear resistance, ASTM B809-95 compliant anti-sulfurization resistors, hardware AES 256-bit encryption, and TCG Opal 2.0 compliance.
Technical Specifications Summary:
Interface & Protocol: SATA III 6Gb/s (SATA 3.2 compliant)
Form Factor: mSATA (JEDEC MO-300, 50.8mm x 29.85mm x 4.85mm)
Flash Memory Technologies: Industrial 3D TLC (BiCS5), A+ SLC / pseudo-SLC
Capacity Spectrum: 32GB to 1TB+
Operating Temperatures: Standard Commercial (0°C to +70°C) / Industrial Wide Temp (-40°C to +85°C)
Protection & Security: Hardware PLP, 30µ” Gold Contacts, Anti-Sulfurization, Thermal Sensor, AES-256, TCG Opal 2.0, A+ SMART Health Monitoring
Target Applications: Optimized for legacy Industrial PCs (IPC), embedded box PCs, military & defense handhelds, vehicle telematics controllers, point-of-sale (POS) systems, and medical diagnostics equipment.
